The Tecc Chromoly Folding Bike 20″ offers durability, convenience and ride comfort rolled into one compact package. Built around a 4130 chromoly steel frame and a 2-step folding system, this bike is made to last and easy to carry, making it ideal for city commutes, multi-modal travel and recreational rides.

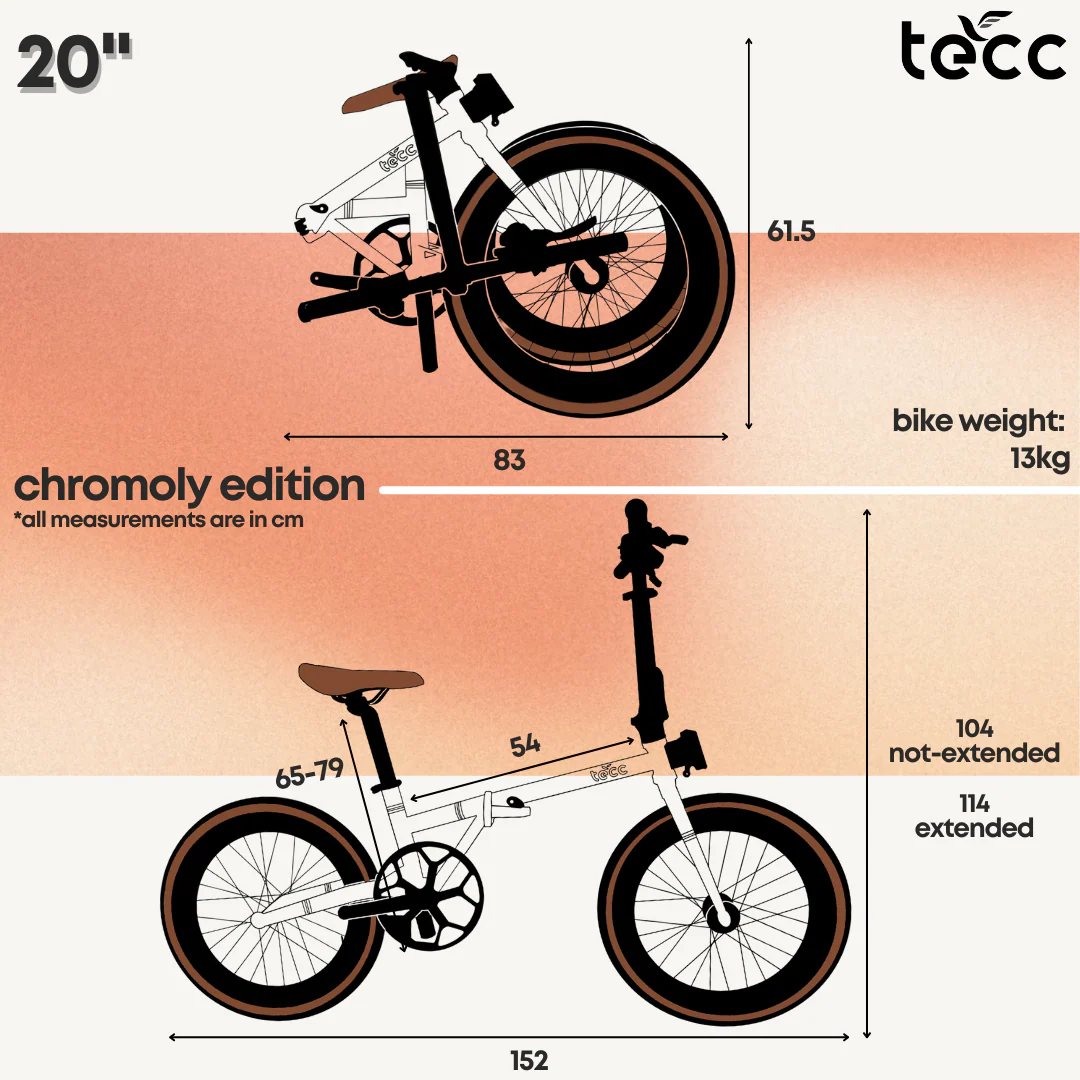

Product Specifications & Dimensions
-
Frame: 4130 chromoly steel (high tensile)
-
Foldability: 2-step fold (frame hinge and handlebar hinge) with reinforced locking latches on frame and handlebar
-
Wheel Size: 20″ (20 inch)
-
Weight: ~13.0 kg (complete bike)
-
Gearing / Drivetrain: Shimano Tiagra 10-speed system, ergonomic shift levers
-
Tyres: Standard 20″ tyres (commuter / city tread)
-
Foldable Pedals: Yes (included)
-
Seatpost & Handlebar: Adjustable height to suit rider’s stature
-
Load Capacity: Recommended maximum rider load ~80 kg
-
Pre-assembly: ~95% assembled—only pedals need installation
-

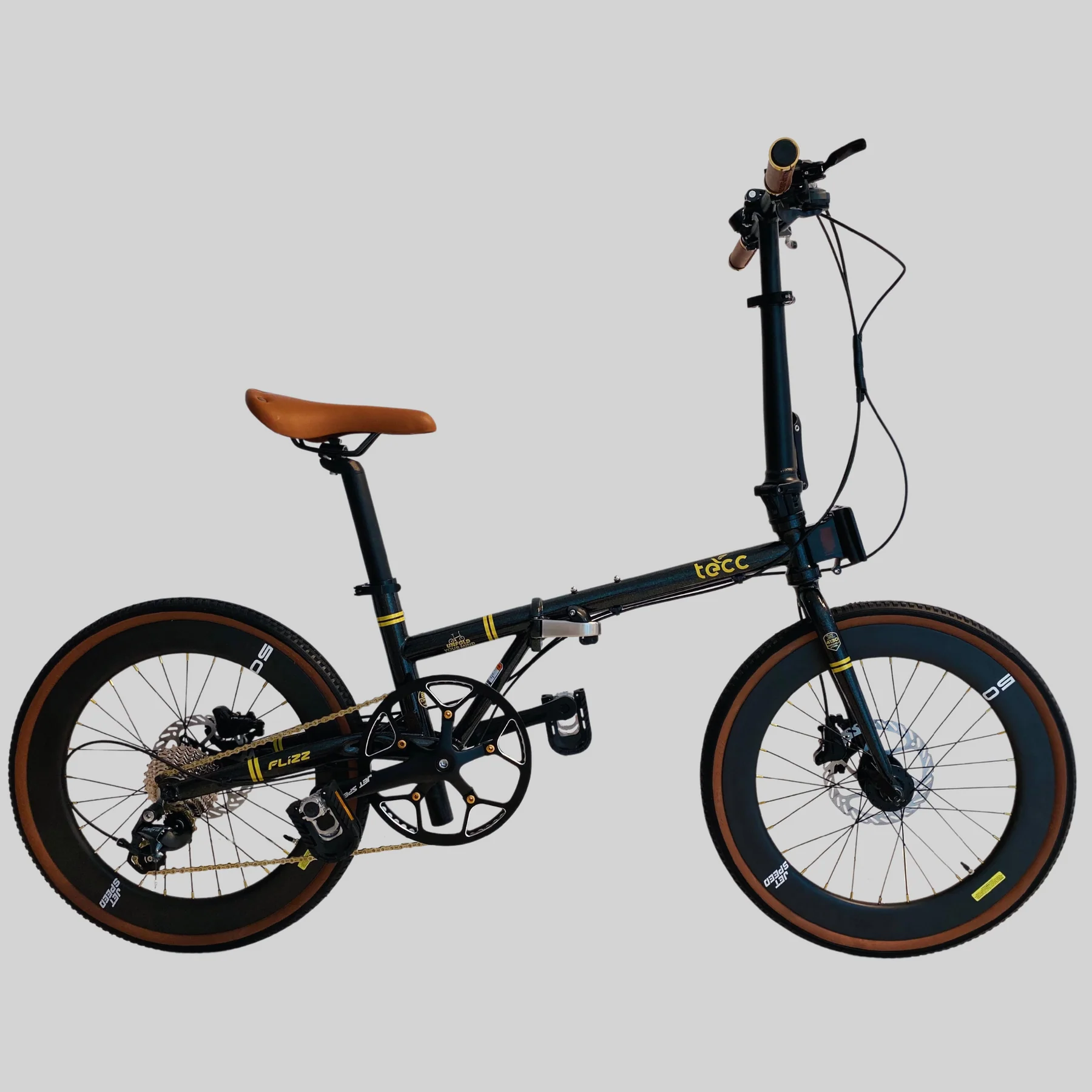

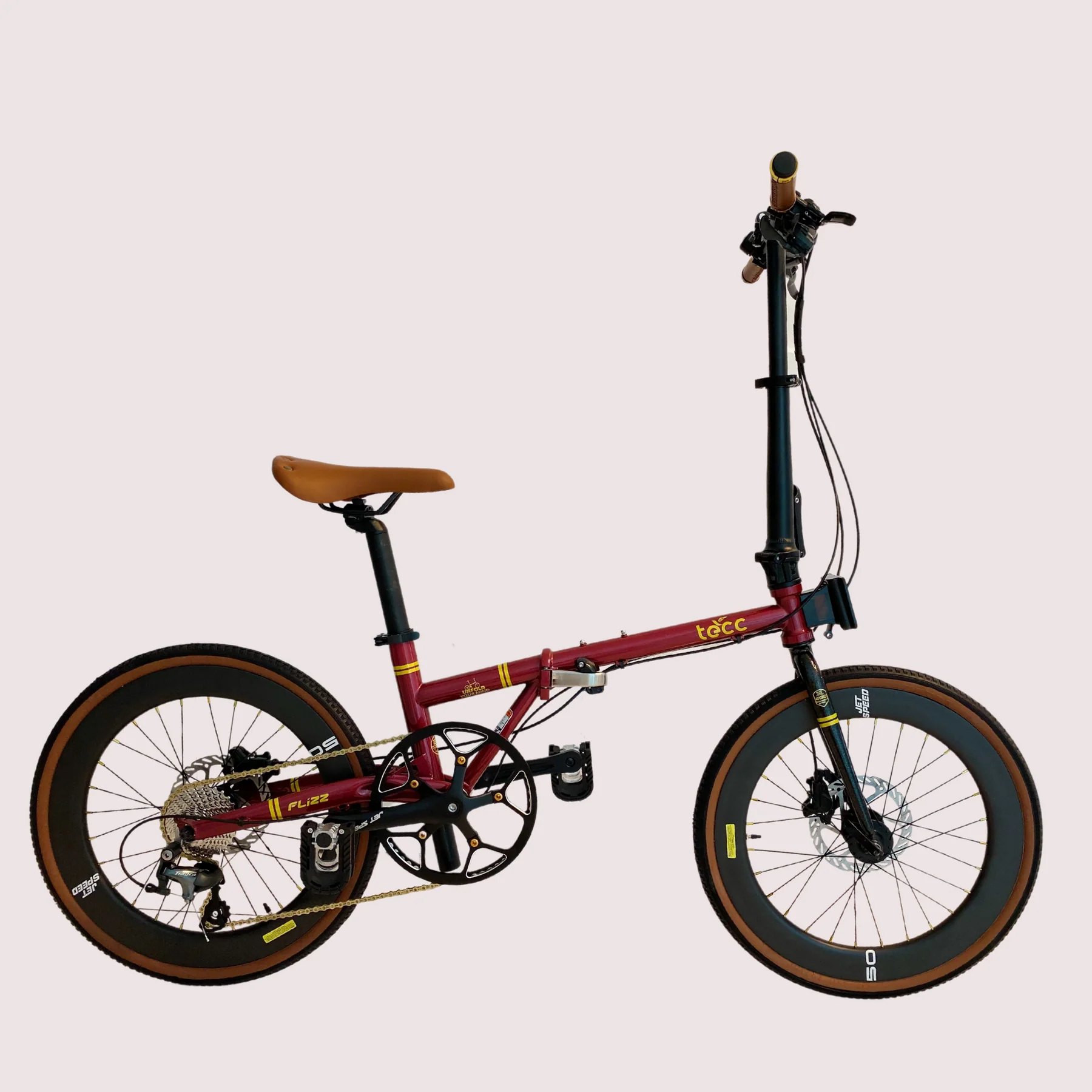

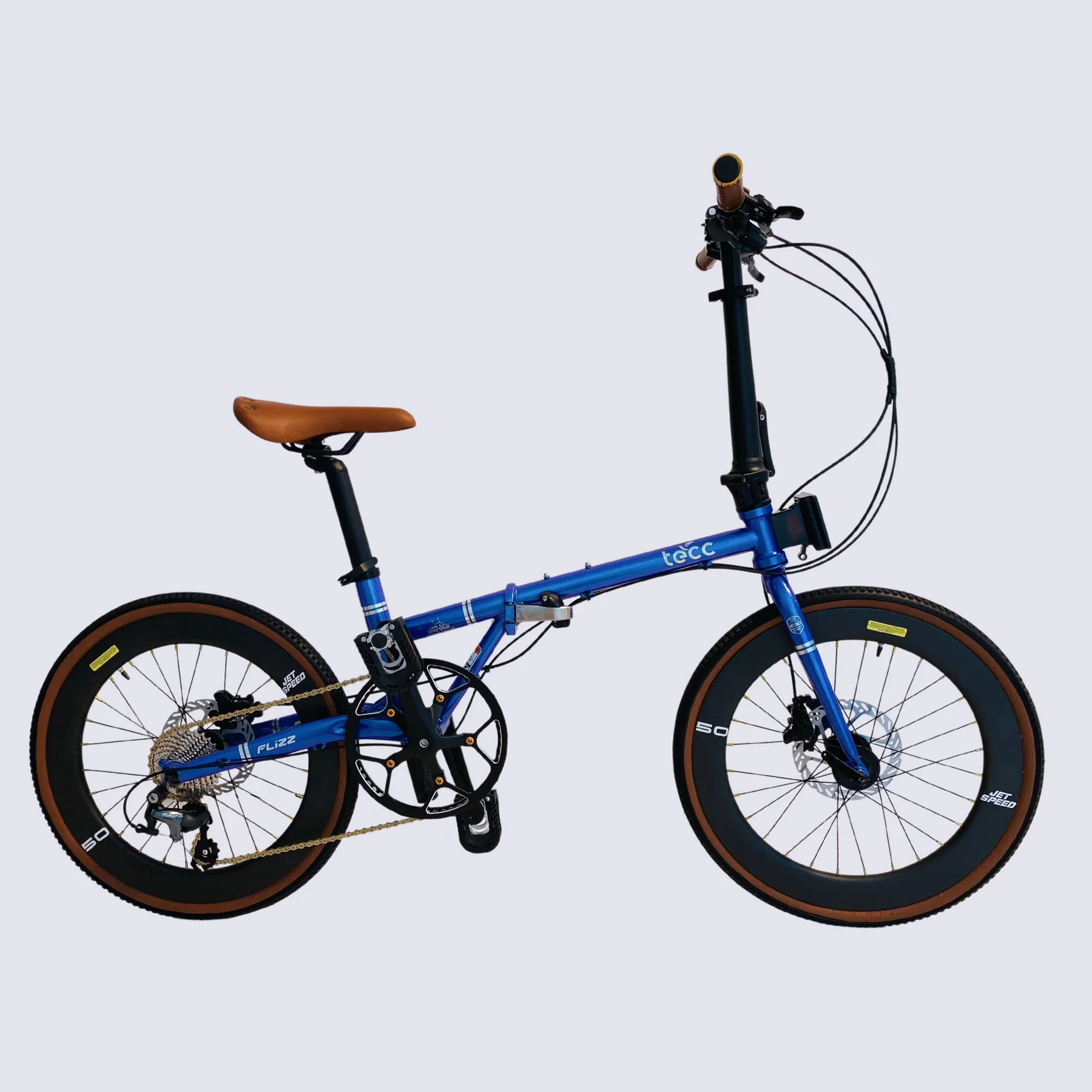

Colours Available: Chameleon Blue, Sky Blue, Chameleon Purple, Black, Red
-
Warranty: 2 years on frame (covers structural defects, not cosmetic or crash damage)
Key Features & Benefits
-

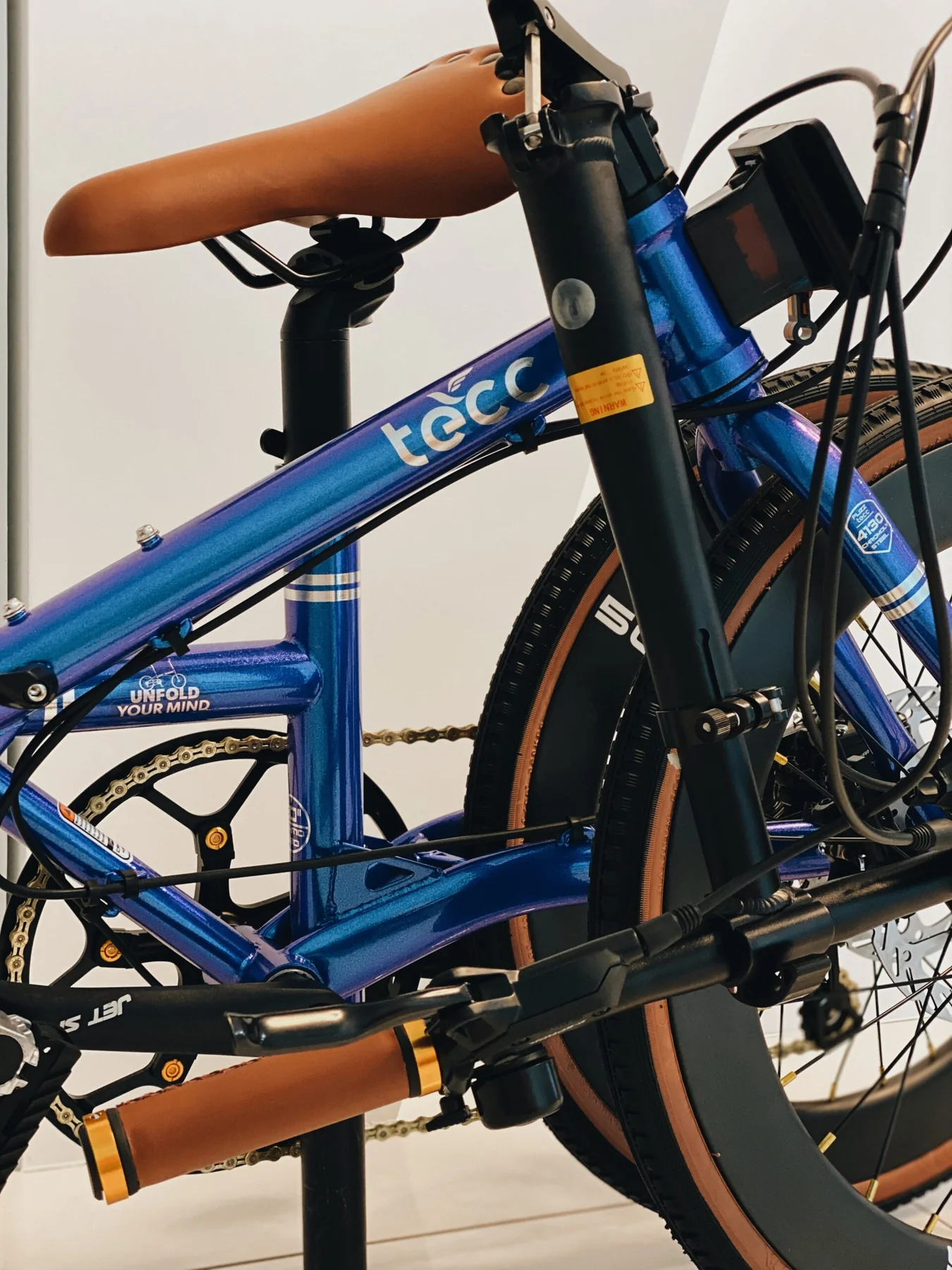

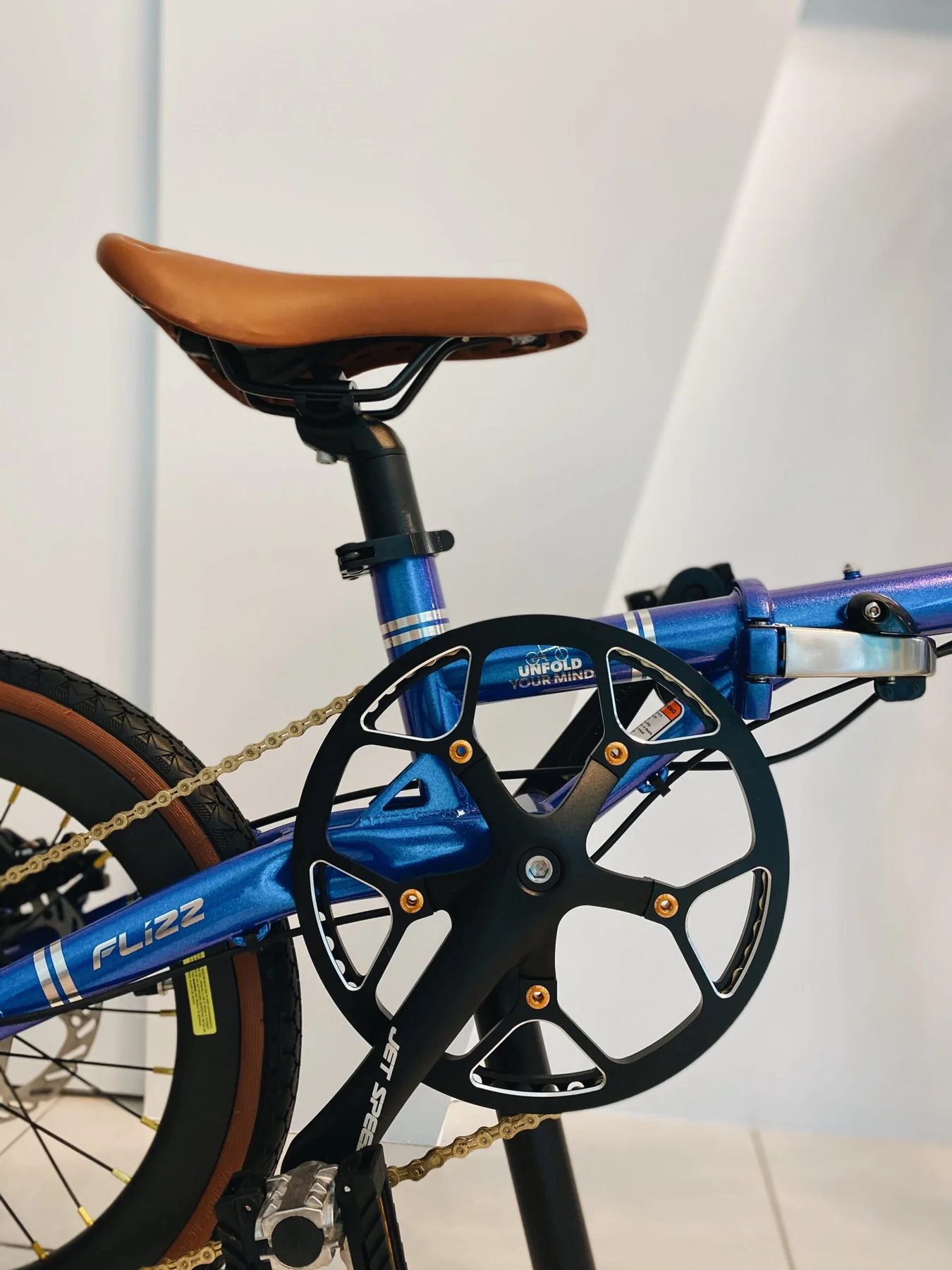

Durable chromoly frame: Chromoly steel provides strength and resilience. While slightly heavier than aluminium, it allows thinner tubing and gives a more forgiving ride feel. It also resists rust and demands lower maintenance.
-

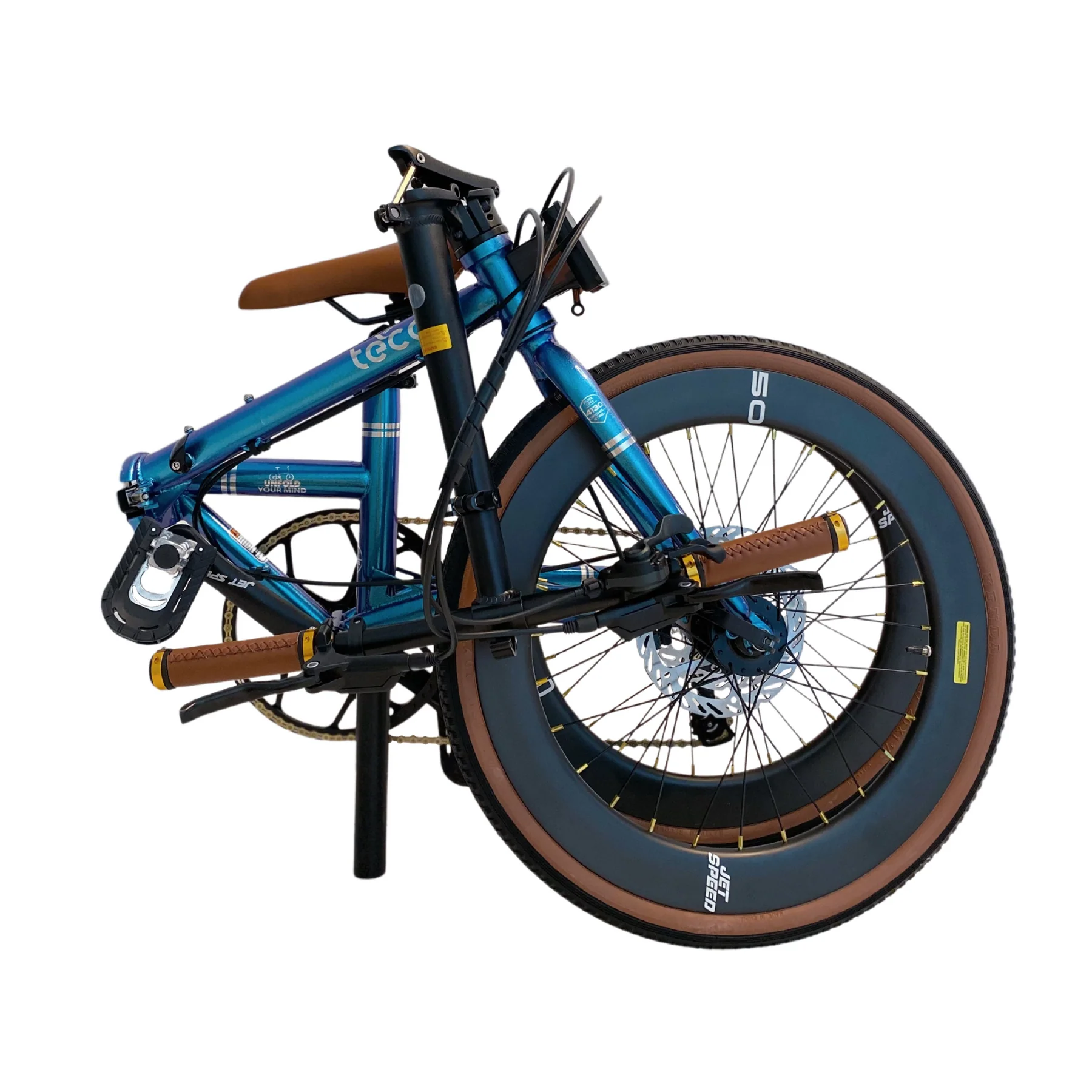

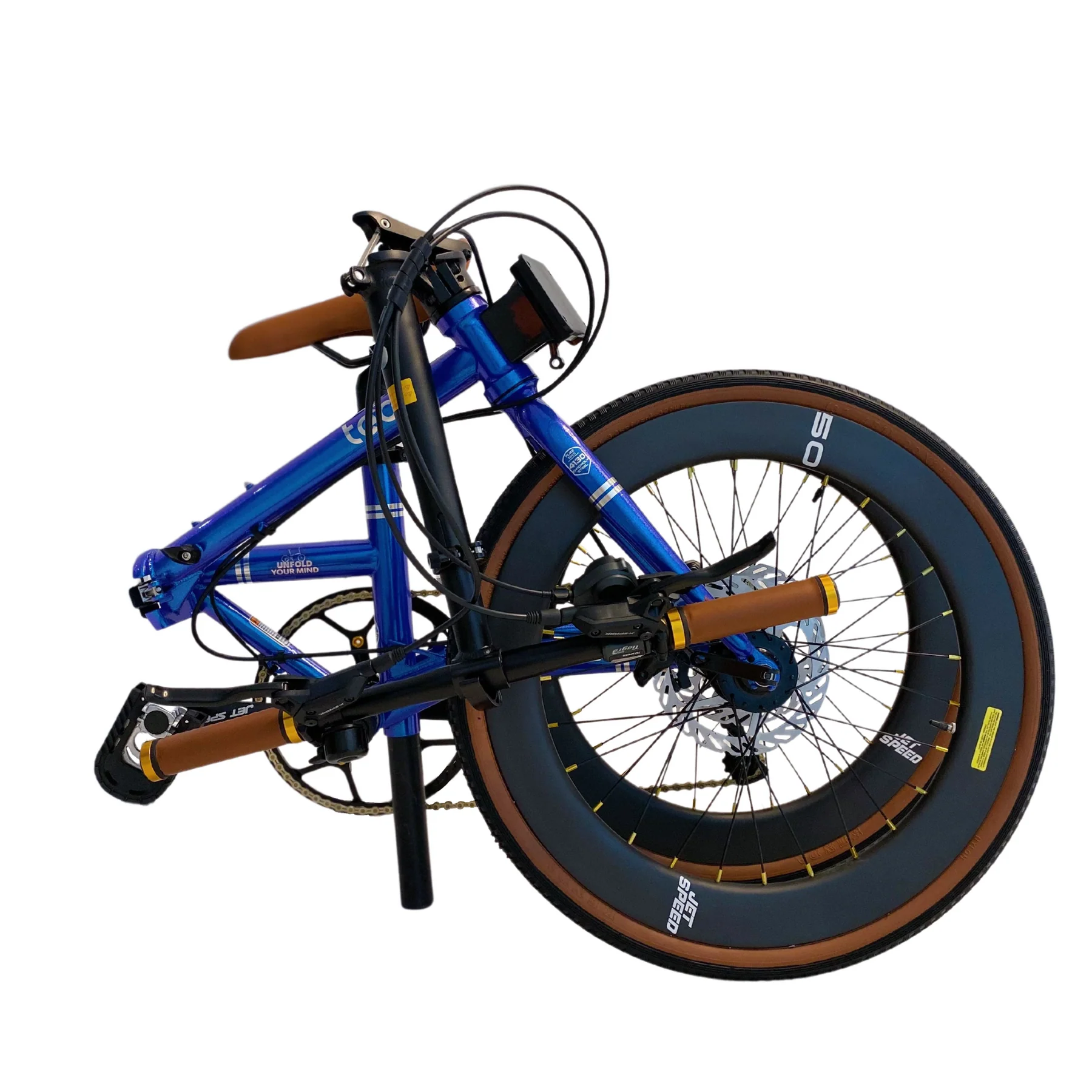

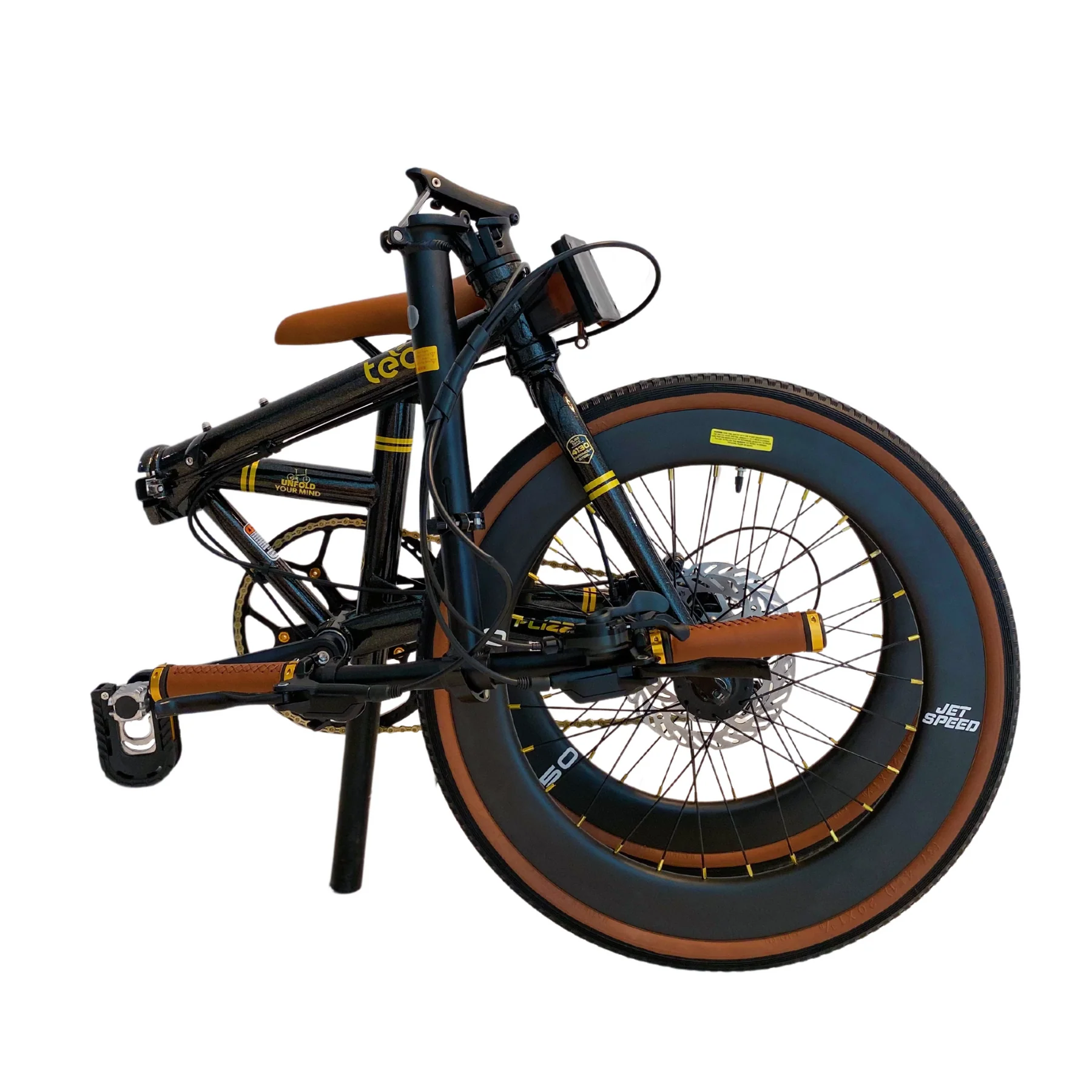

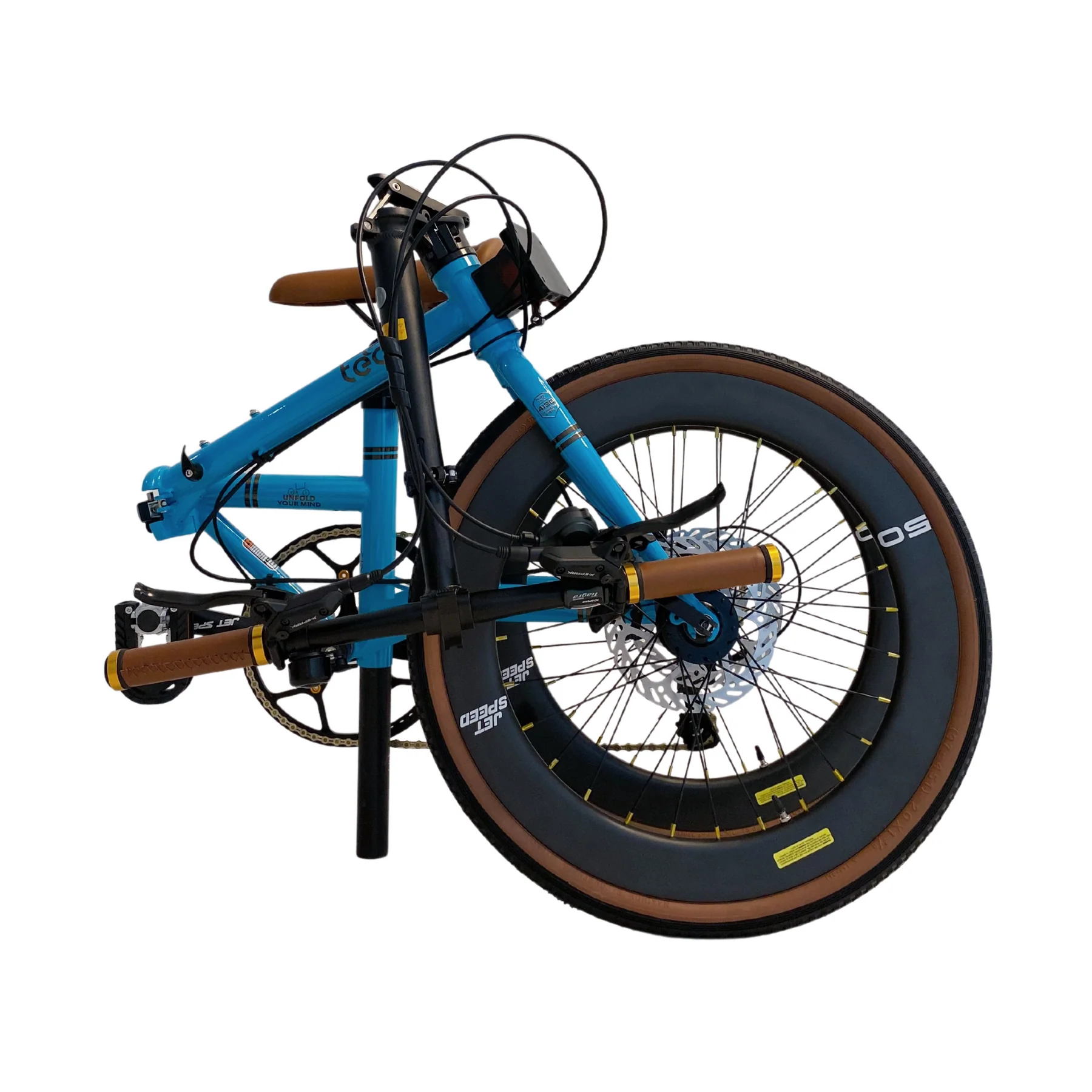

Compact folding design: In just two simple steps, the bike folds for easy storage in small apartments, car boots or public transport spaces.
-

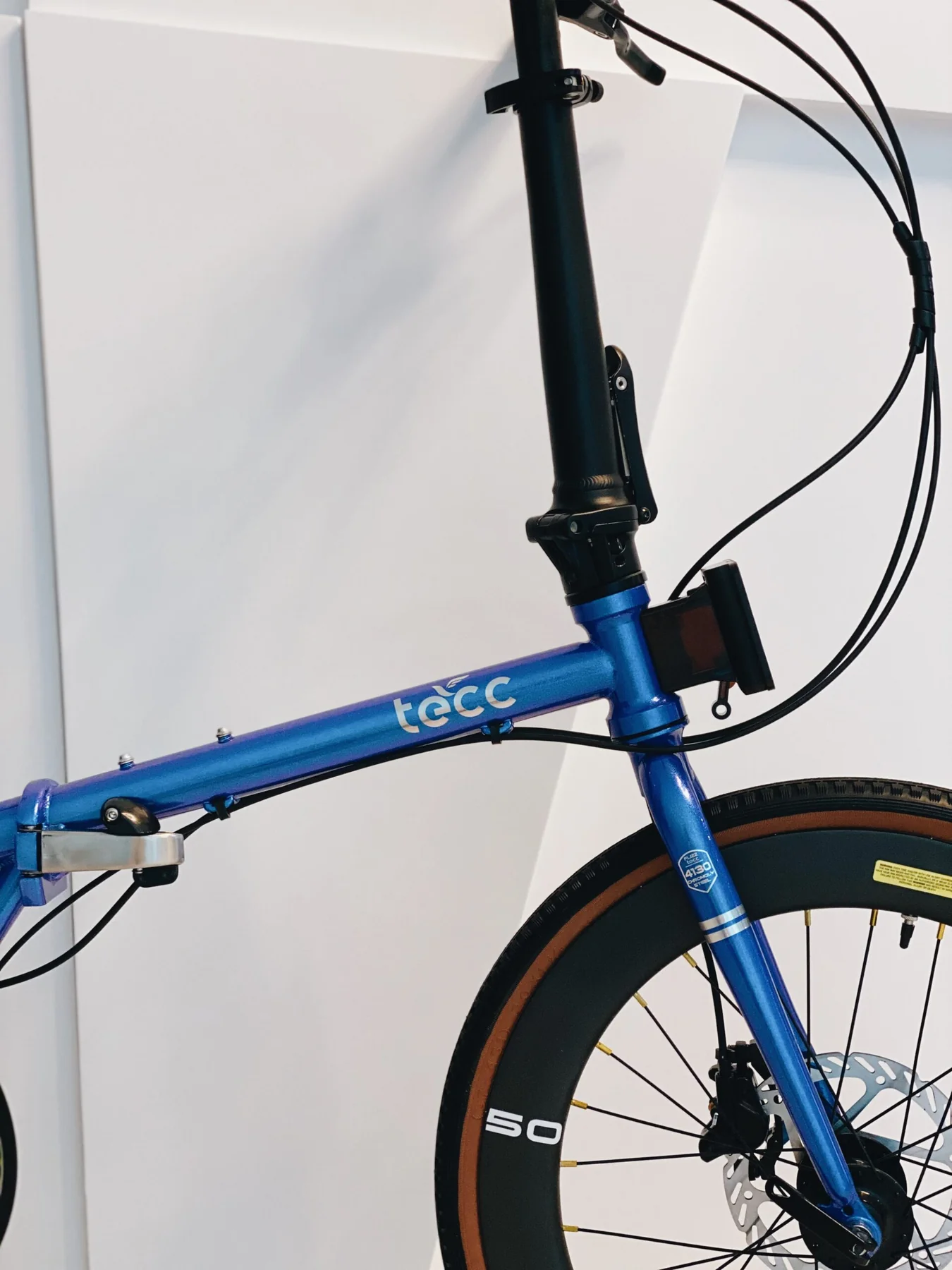

Reinforced lock mechanisms: Locks on the frame hinge and handlebar hinge are built robustly to avoid accidental unfolding during riding.
-

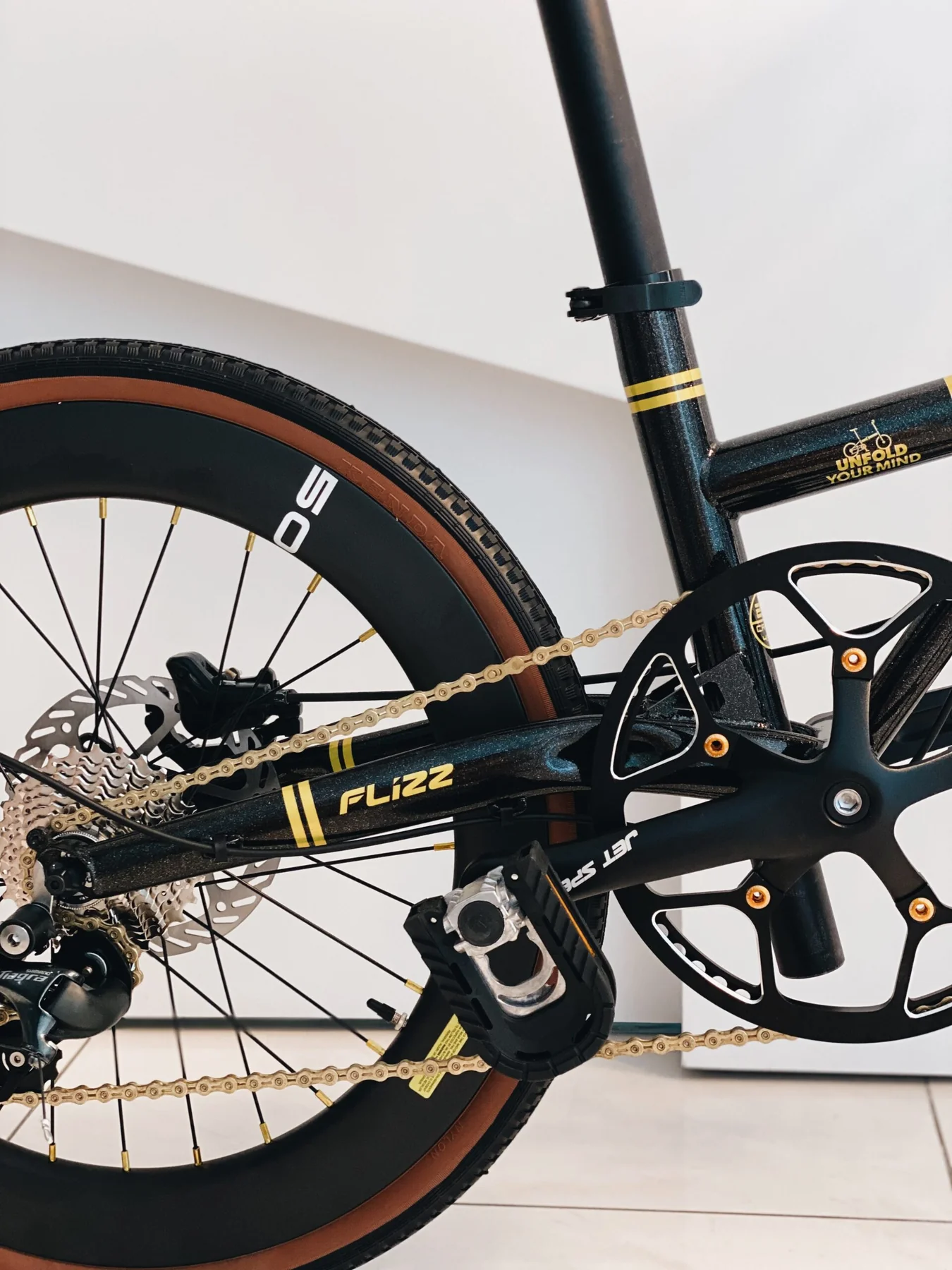

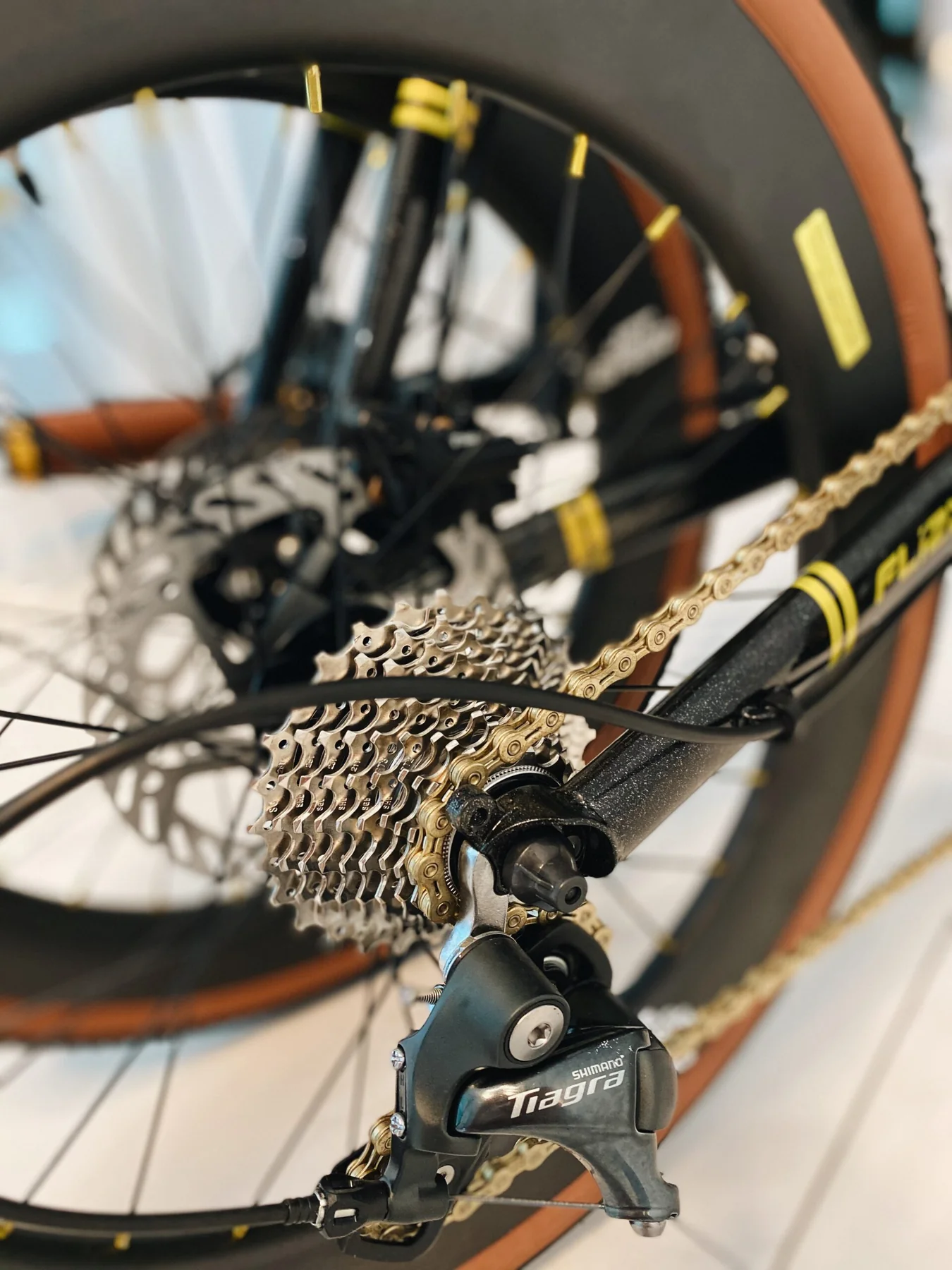

Complete drivetrain: With 10 speeds from Shimano Tiagra, riders enjoy smooth shifting across urban terrain—including slight inclines.
-

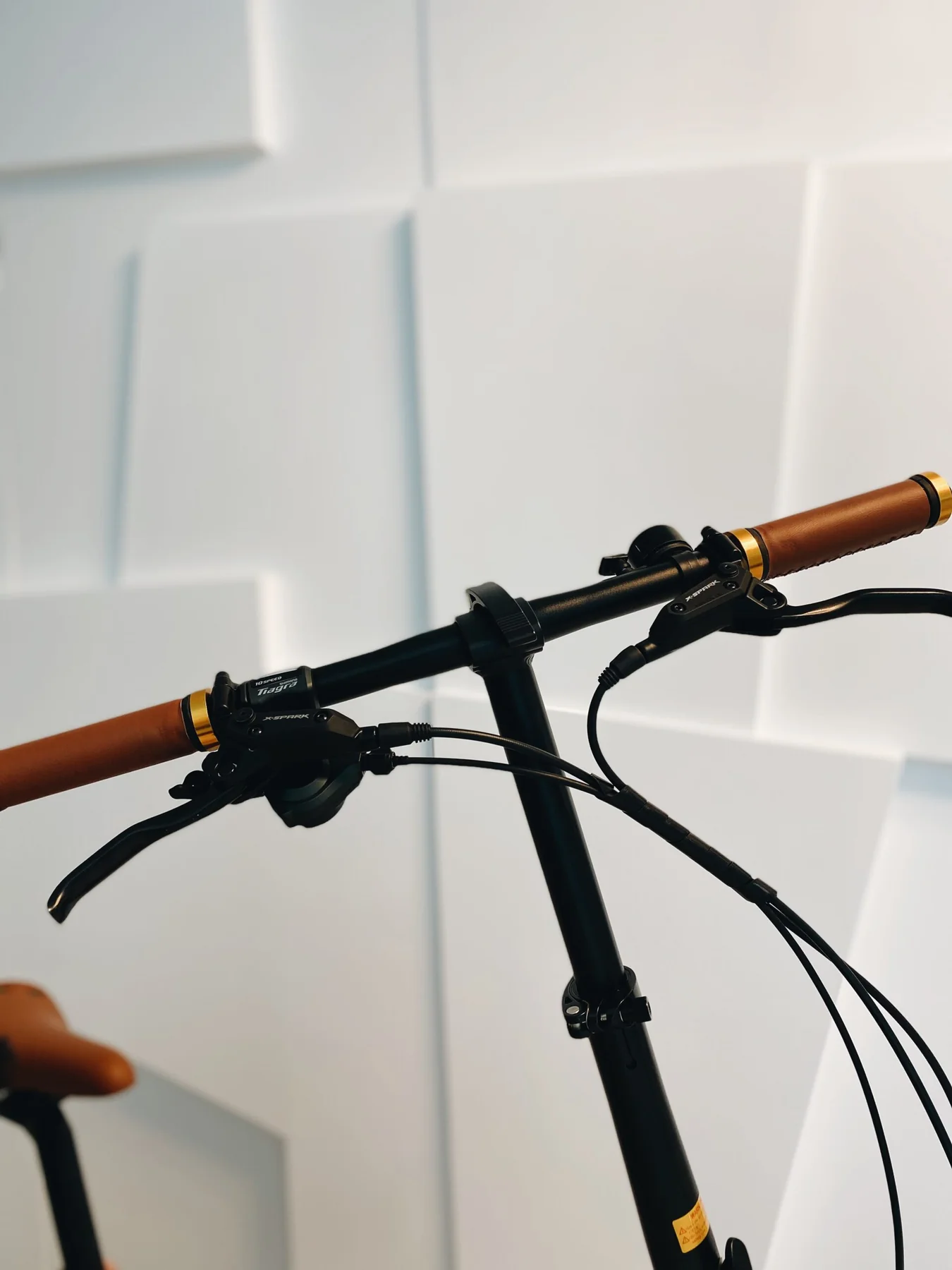

Adjustable ergonomics: Seatpost and handlebar height can be tuned to rider’s preference, making the bike comfortable for a range of heights.
-
Ride-ready out of box: Since 95% assembly is completed, the only required step is fitting the pedals, meaning less hassle to get riding.
Usage Instructions & Setup
-
Inspect upon arrival: Check frame, wheels, hinges, cables and components for transport damage.
-
Install pedals: Note left “L” pedal is reverse thread (turn anti-clockwise to tighten), and right “R” is standard (turn clockwise).
-
Adjust seat & handlebar: Raise or lower to a comfortable height, ensuring not to exceed the minimum insertion mark on seatpost.
-
Lock hinges: Before riding, confirm that both the frame hinge and handlebar hinge locks are fully engaged in their locked positions.
-
Test shifting / brakes: Ride slowly and shift through all 10 gears. Confirm brakes are responsive and pad contact is even.
-
Practice folding / unfolding: In a safe space, practice locking/unlocking the hinges until the process becomes smooth and familiar.
-
Routine checks: Prior to each ride, inspect folding latches, bolts and joints for looseness or play.
-
Cleaning & maintenance: Use mild soap and water for washing. Avoid high-pressure sprays around hinges, bearings and pivots. Lubricate the chain, derailleur pivots and hinge latches periodically (e.g., every 200–300 km).
-
Storage: When folded, store indoors or under shelter. Avoid prolonged exposure to sunlight or heavy rain to preserve paint and integrity of parts.
Precautions & Safety Notes
-
Always ensure both hinge locks are fully secured before riding—failure to do so may result in sudden folding while in motion.
-
Do not exceed the recommended load (≈ 80 kg). Overloading stresses frame, joints and hinges.
-
Avoid aggressive impacts or collisions with curbs or potholes; repeated shocks may compromise hinge mechanisms or frame welds.
-
Inspect hinge areas, welds and joints regularly for cracks, fatigue or deformation. If any structural damage is found, cease use immediately and consult a service professional.
-
Do not overtighten bolts beyond manufacturer torque ratings—especially near hinge parts—to prevent thread damage or distortion.
-
Use compatible replacement parts (tyres, tubes, brake pads, cables) matching the bike’s specs. Incorrect parts may impair performance or compromise safety.
-
After a serious crash or impact, even if cosmetic damage is minimal, inspect hinges, frame and components thoroughly for hidden damage before further use.
