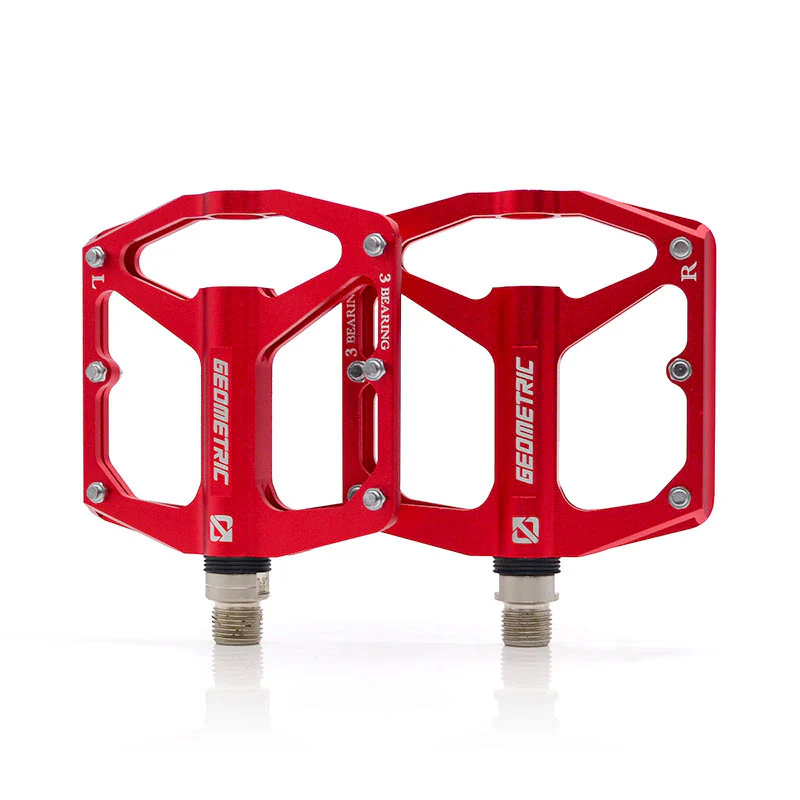

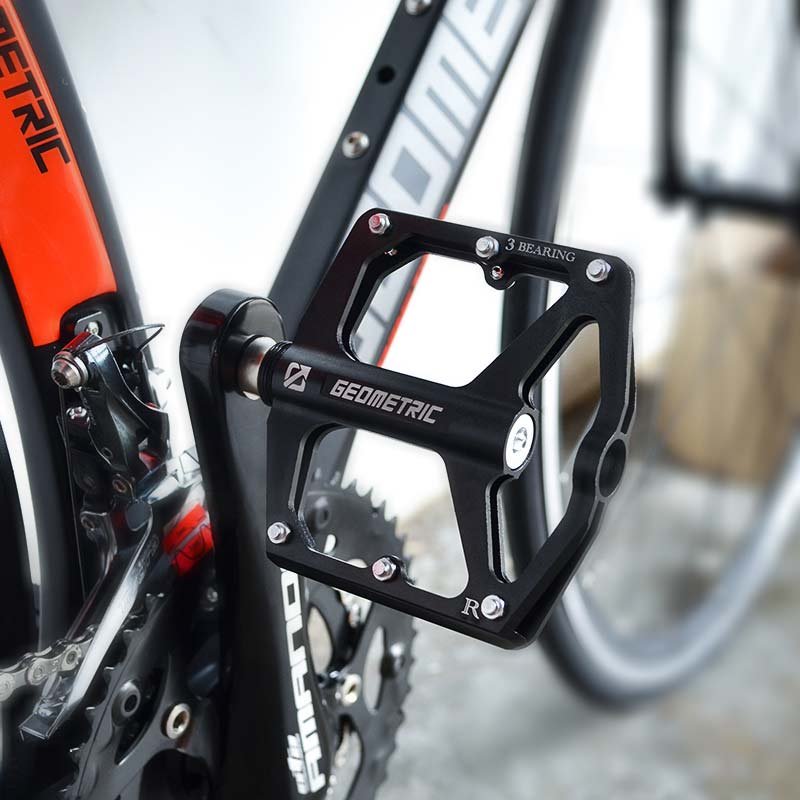

Upgrade your ride with the Geometric Pedals CK577 3SB — precision-machined aluminium pedals built for durability, smooth rotation, and confident traction. Featuring 3 sealed bearings, an extruded & CNC-machined body, and excellent grip, these pedals are ideal for urban, trekking, or mountain bikes. Available in multiple colours, they mix performance and style for cyclists across Malaysia.
Specifications & Dimensions
-
Material / Body: Aluminium extruded body with CNC machining for strength and lightness
-

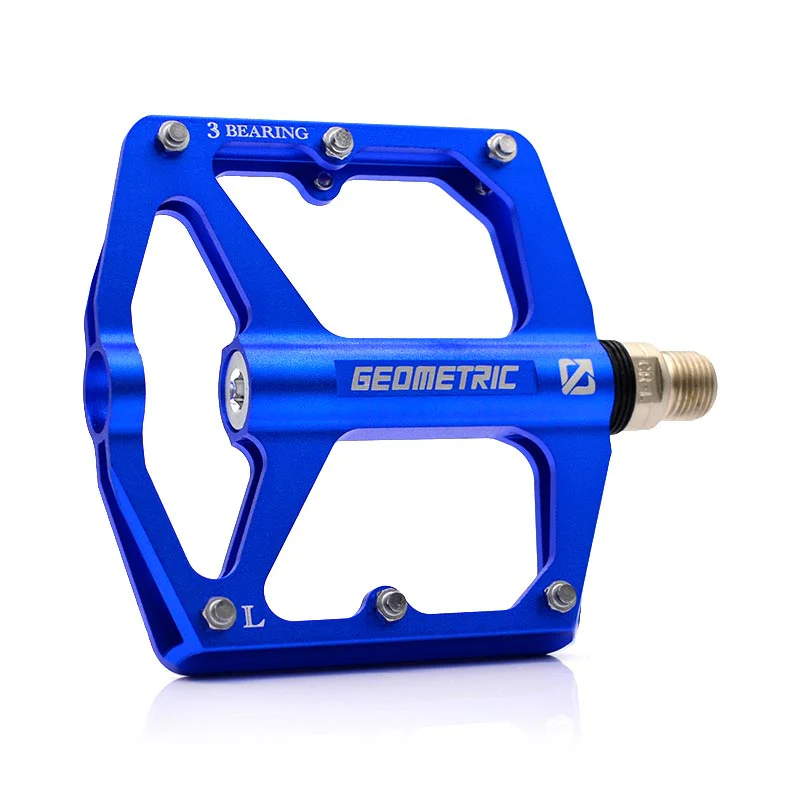

Bearings: 3 sealed bearings (one on each side plus axle end) for smooth rotation and durability
-
Design: Skid-proof surface (textured / pins) to resist slipping under wet or muddy conditions
-

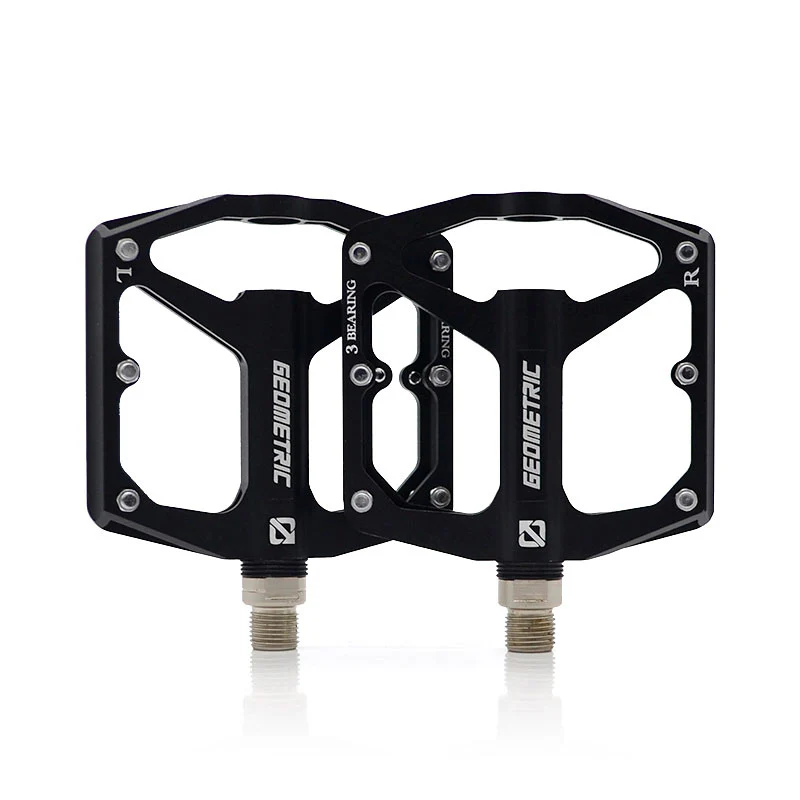

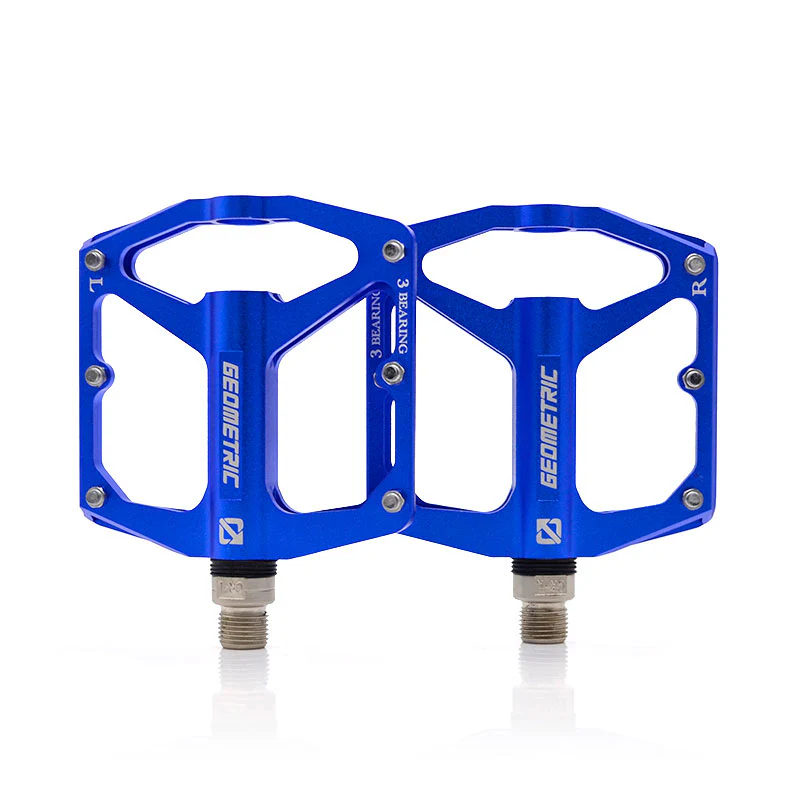

Finish & Colours: Offered in Black, Red, Blue
-
Weight: Each pedal weighs approximately 324 g
-
Spindle / Axle: Standard 9/16″ (≈ 14.3 mm) steel spindle (common size for most adult bikes) — verify thread direction for left side (reverse thread)
-

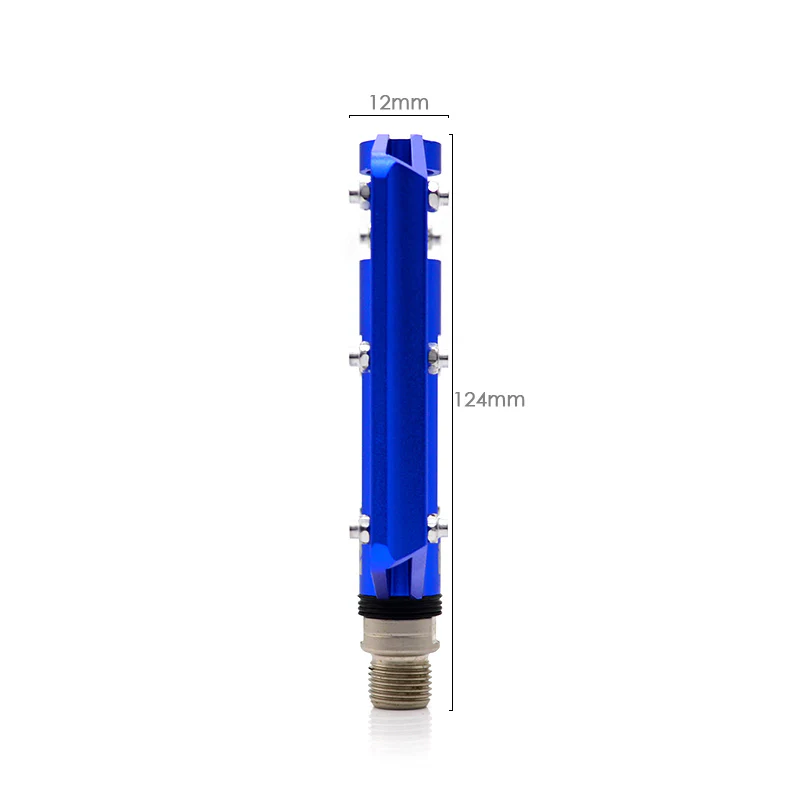

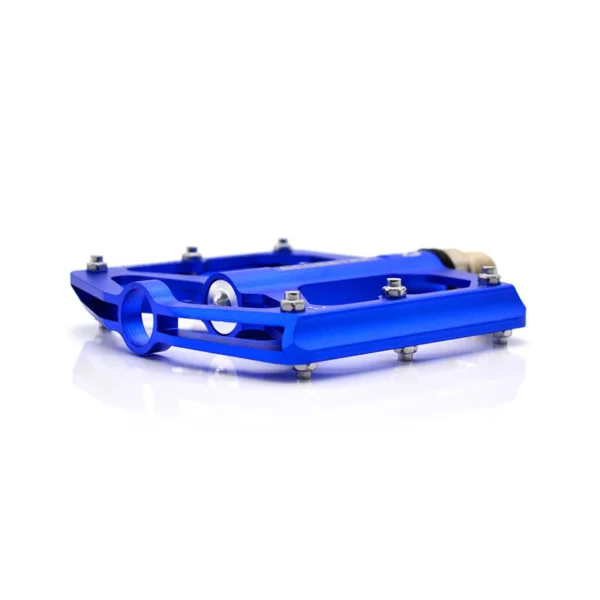

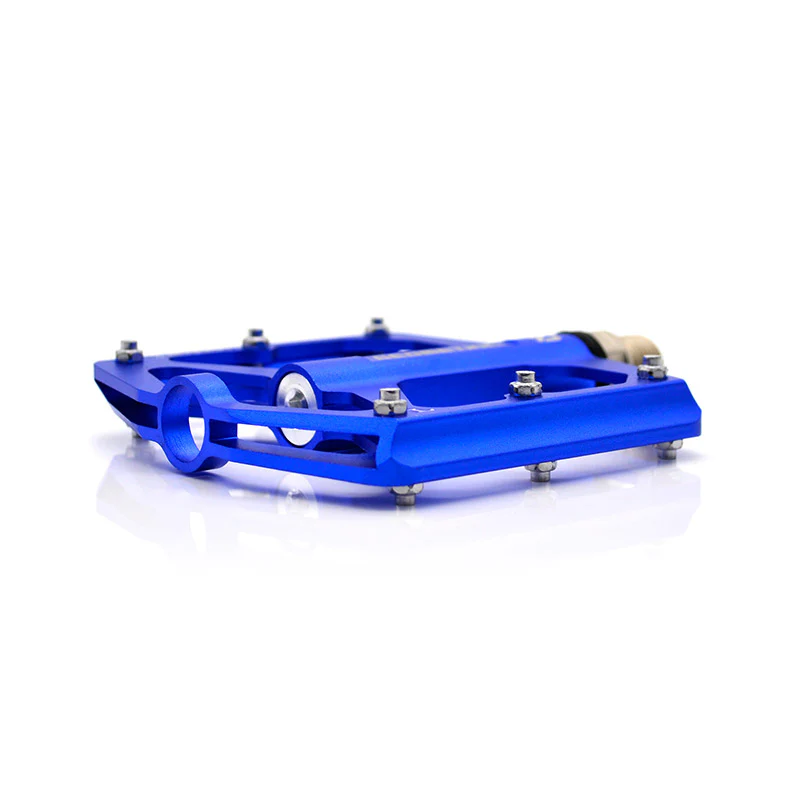

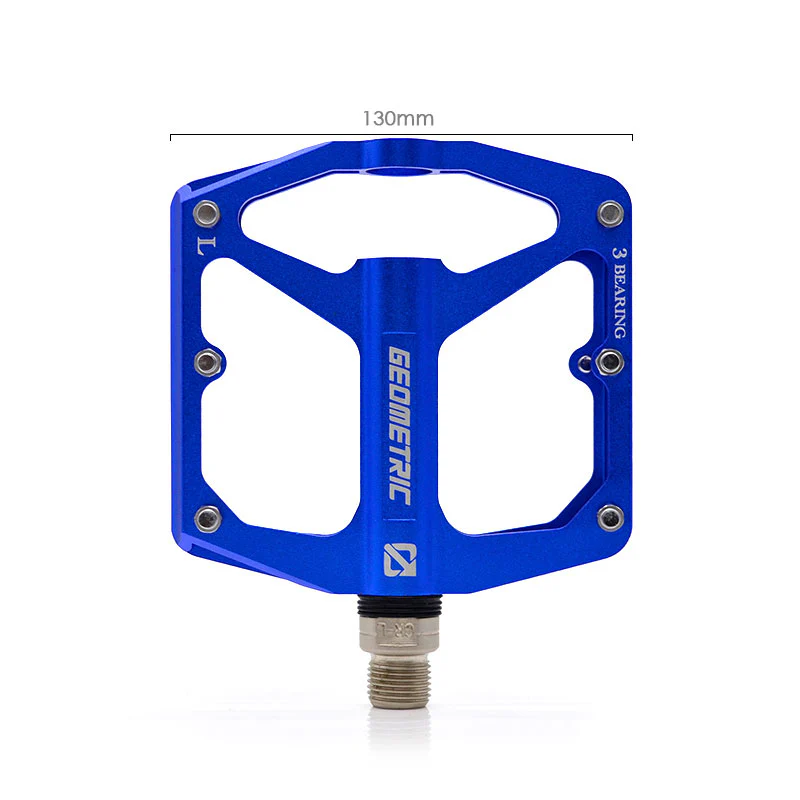

Dimensions (approx.): Platform size and thickness not officially published; the body is low-profile but wide enough for stable foot support
-
Compatibility: Fits most bicycle cranksets with 9/16″ pedal threads (standard adult bikes)
Key Features & Benefits
-
Smooth & Durable Bearings
The triple sealed bearing setup ensures low friction, long life, and smoother rotation under load. -
Strong and Lightweight
The extruded aluminium body with CNC finishing offers excellent strength-to-weight ratio. -
Excellent Grip / Traction
Skid-proof surface or build enhancements help maintain foot contact even in rain or mud. -
Visual Appeal
With multiple colour options, these pedals allow riders to match or accent their bike’s aesthetics. -
Easy to Install
Standard thread and shape make installation straightforward — no exotic tools required.
Usage Instructions
-
Preparation
-
Clean crank arm threads and ensure they are free of old grease or debris.
-

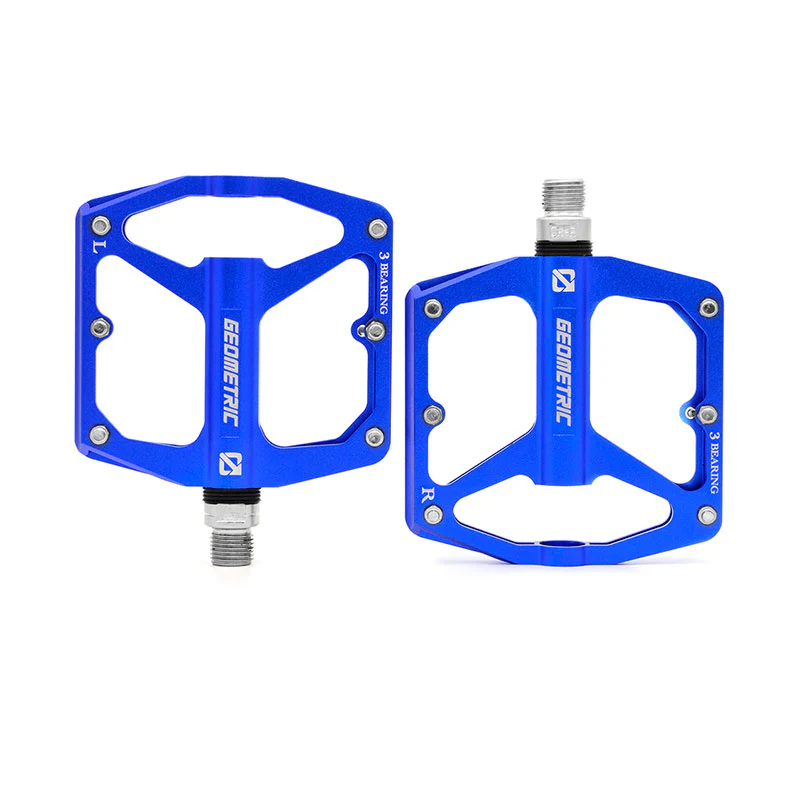

Identify left and right pedals (often marked “L” or “R”).
-
-
Installation
-
Apply a small amount of grease to pedal threads to ease future removal.
-
Thread the right pedal clockwise into the right crank arm; the left pedal typically is reverse-thread (counter-clockwise) into the left crank arm.
-
Use a pedal wrench or hex key (depending on design) to tighten securely, but avoid over-tightening.
-
-
During Riding
-
Ensure your foot is fully engaged on the pedal—centered on the platform.
-
Avoid hitting the pedals hard against obstacles (rocks, curbs), especially the spindle ends.
-
-
Maintenance
-
Periodically check that pedals remain tight and secure on the crank arms.
-
Clean off mud, grit and grime after rides; flush water (mild soap and water) and dry thoroughly.
-
If rotation becomes stiff or rough, service or replace bearings.
-
Re-grease spindle threads occasionally during major servicing.
-
Precautions & Safety Notes
-
Before each ride, check that pedals are securely fastened—loose pedals can strip threads or detach mid-ride.
-
Do not exceed torque limits — overtightening can damage crank arm or pedal threads.
-
Avoid cross-threading when installing — always start by hand before applying wrench torque.
-
Under severe impacts (e.g. collision, heavy hits), inspect the pedal body and spindle for cracks or bending before continued use.
-
Replace any pedal showing signs of cracked body, stripped threads, or bearing failure.
-
Avoid wet or muddy usage without cleaning; grit can work into bearings or spindle interface and reduce lifespan.
-
Always use the correct side pedal (left/right) — mixing them can damage threads.
