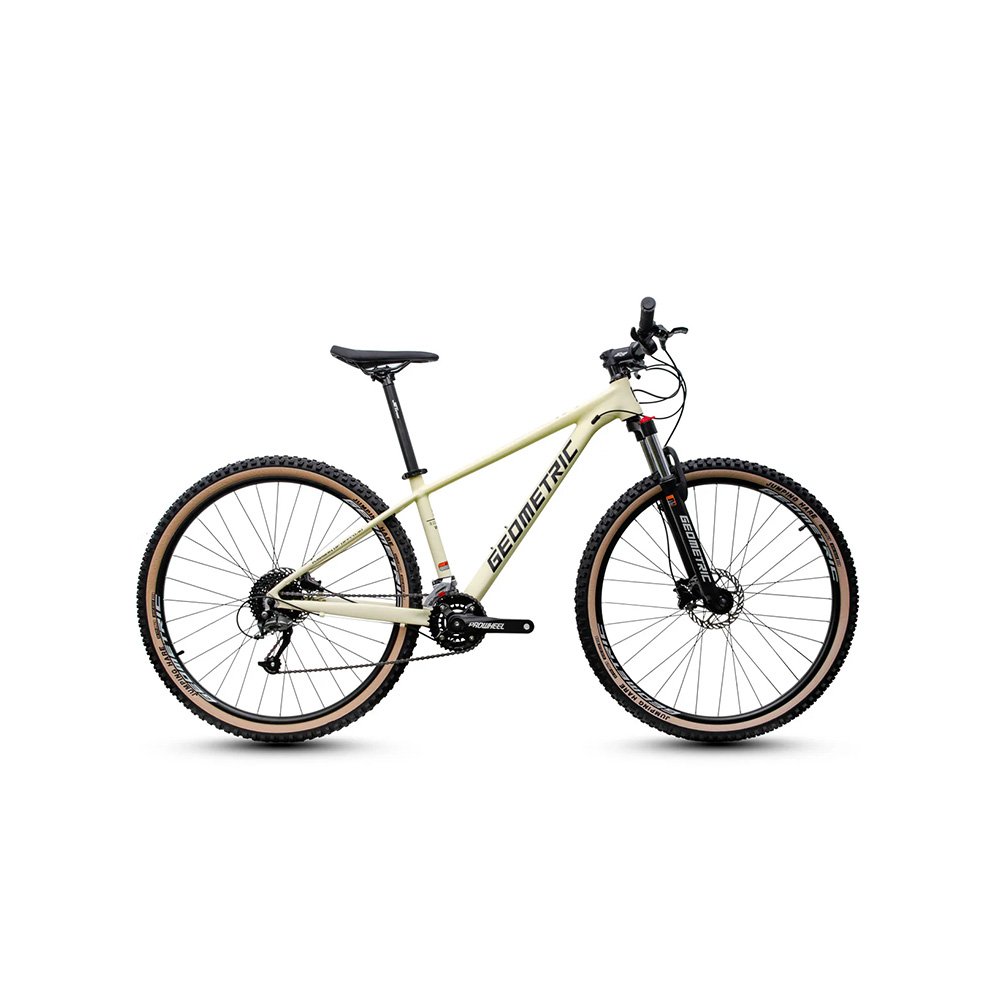

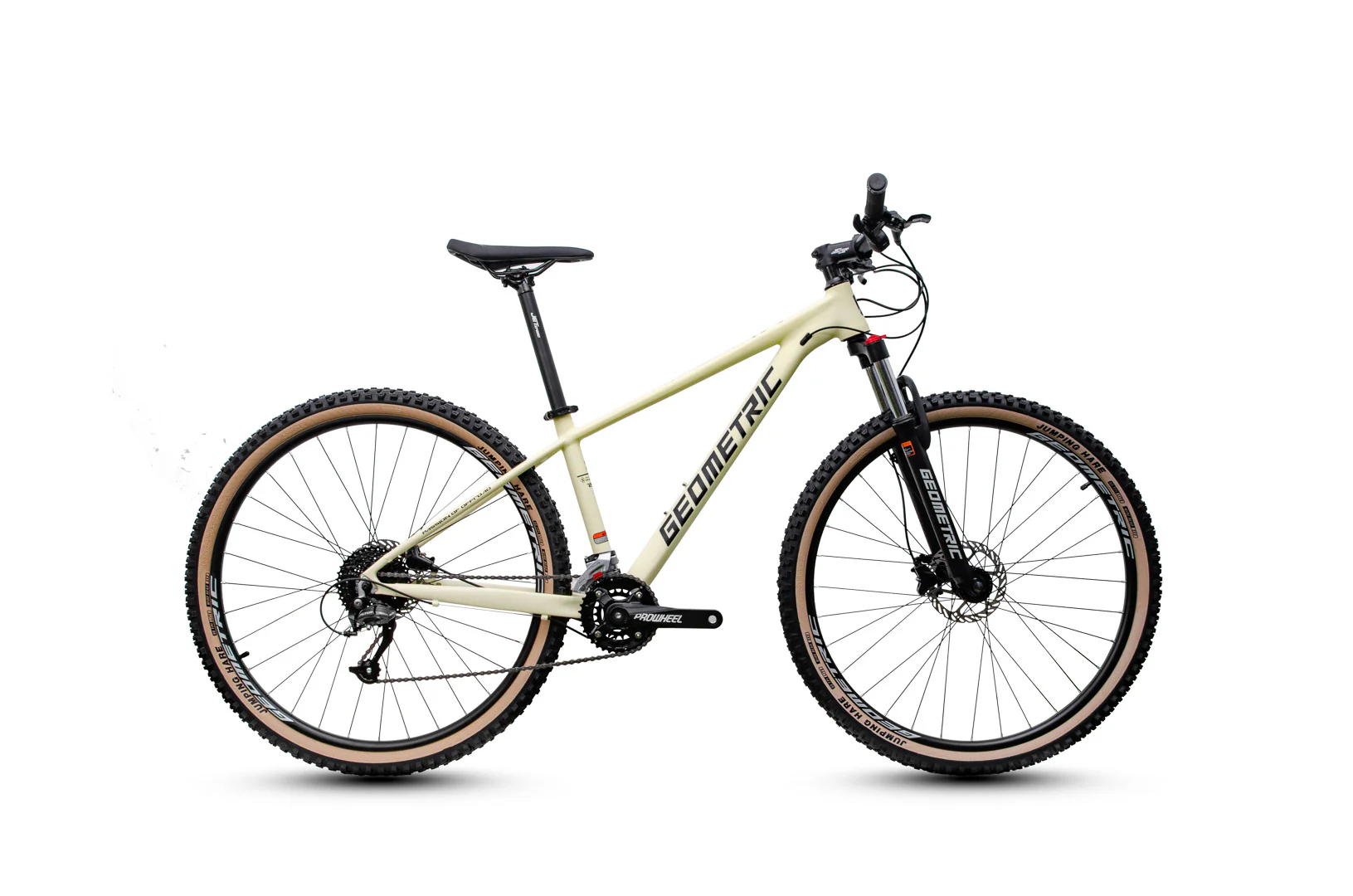

The Geometric Caliber 9 is a rugged 29-inch hardtail mountain bike engineered for both entry-level and intermediate riders. Available in two frame sizes (15.5″ and 17″), this model balances control, comfort and versatility—ideal for trail rides, forest paths and adventurous climbs across Malaysia’s terrain.
Specifications & Dimensions
-

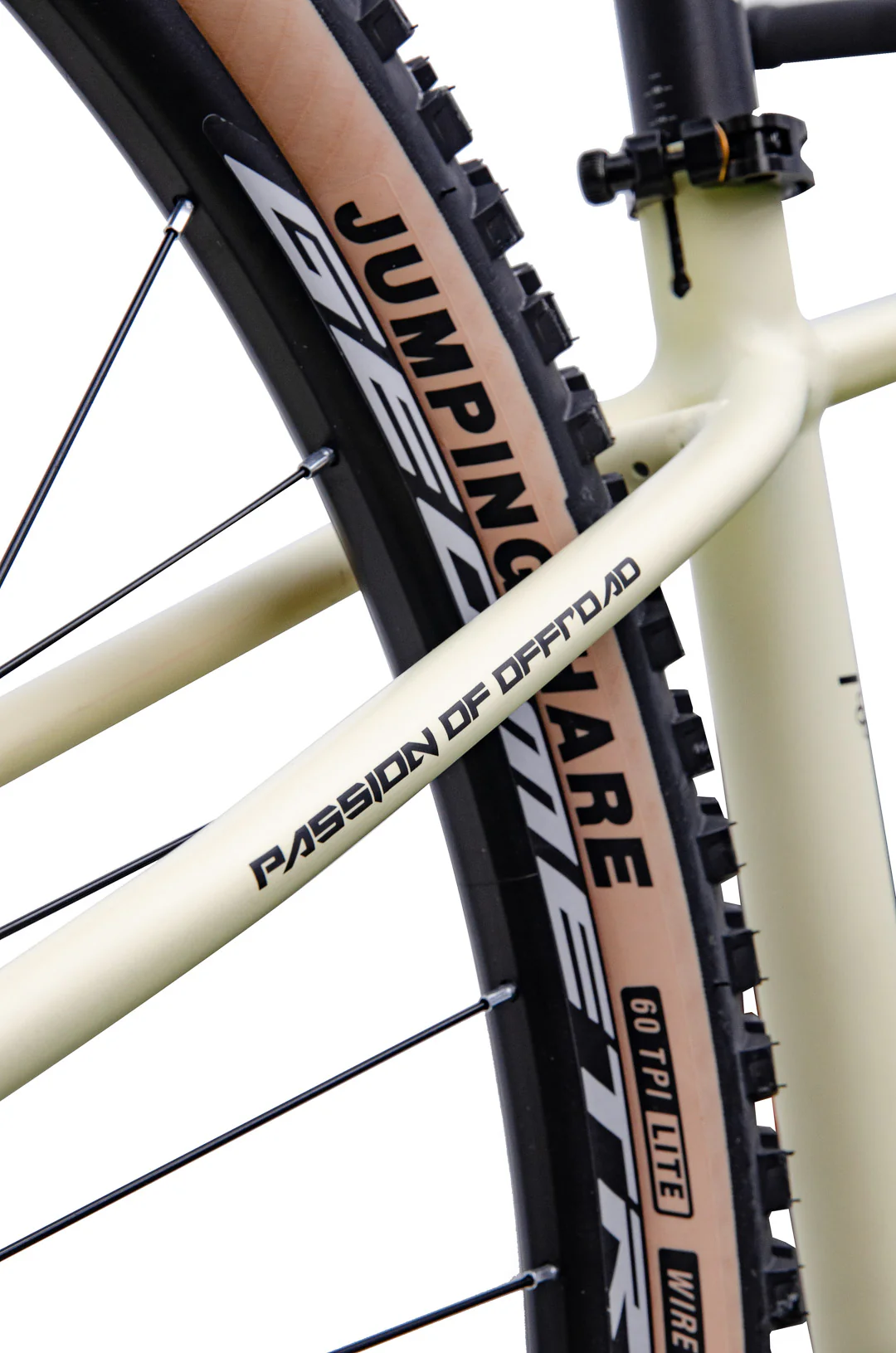

Frame material / size: Alloy 6061, available in 15.5″ or 17″ frame.
-
Wheel / tyre: 29″ wheels; tyres: Wanda King Jumping Hare 29 × 2.25 (29×2.25)
-

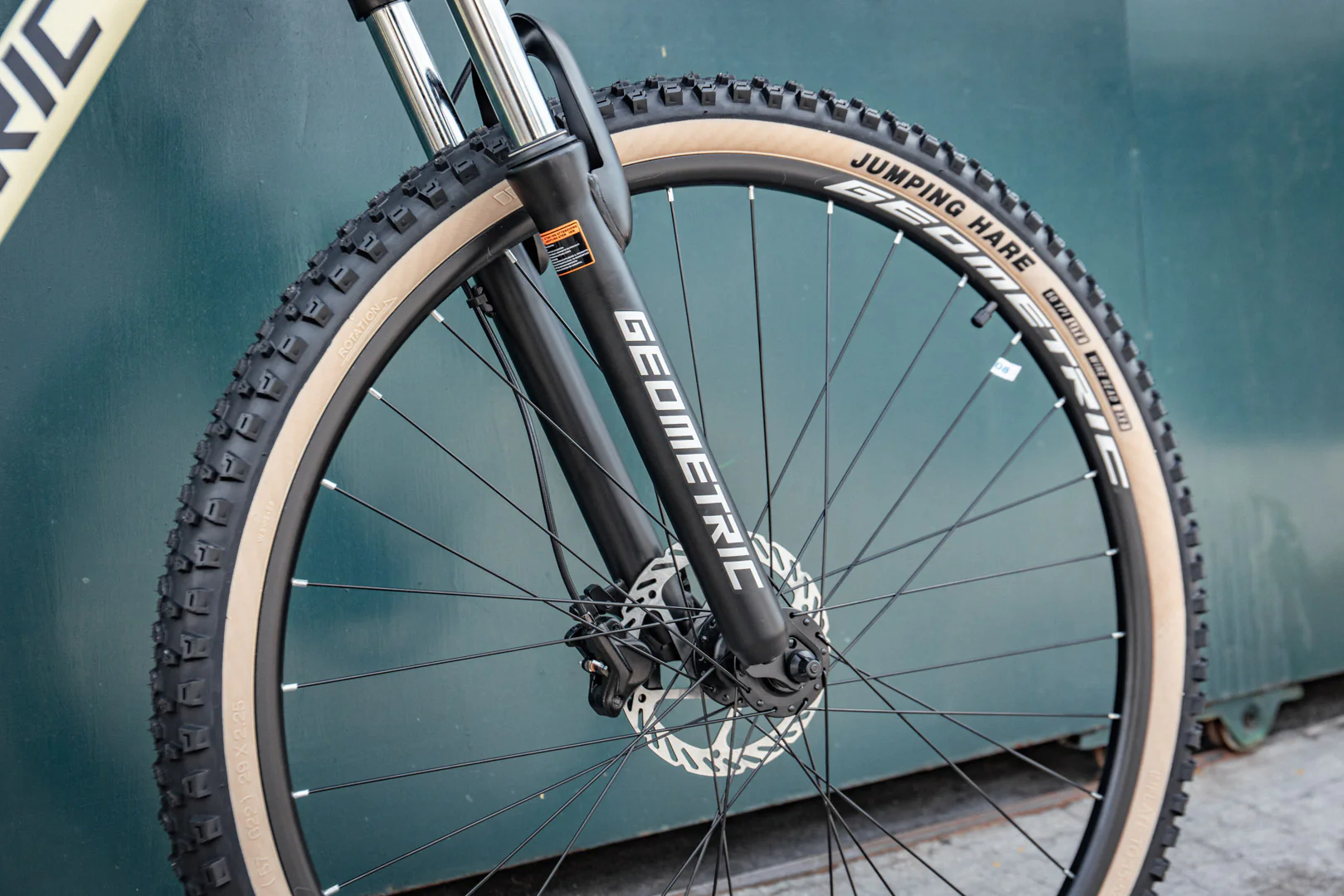

Fork / suspension: Geometric coil fork, travel 100 mm
-
Drivetrain / gearing:

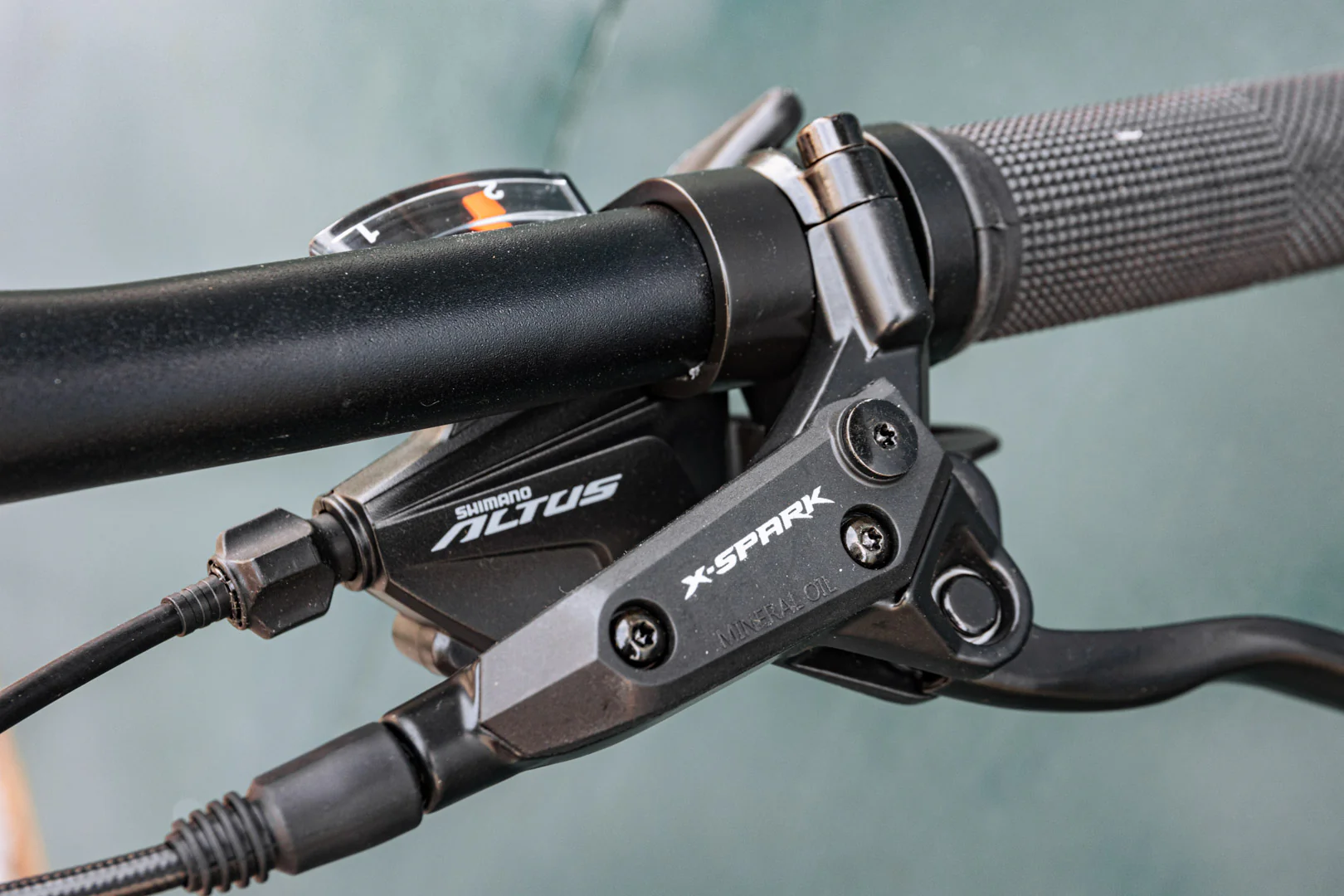

• Shifter: Shimano Altus SL-M2010 (2×9)
• Front derailleur: Shimano Altus M2020-TS

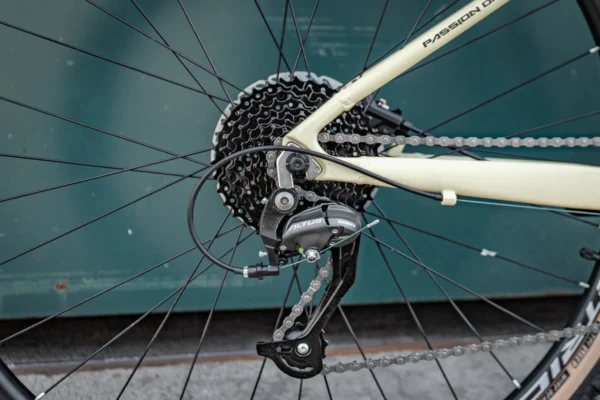

• Rear derailleur: Shimano Altus M370-SGS

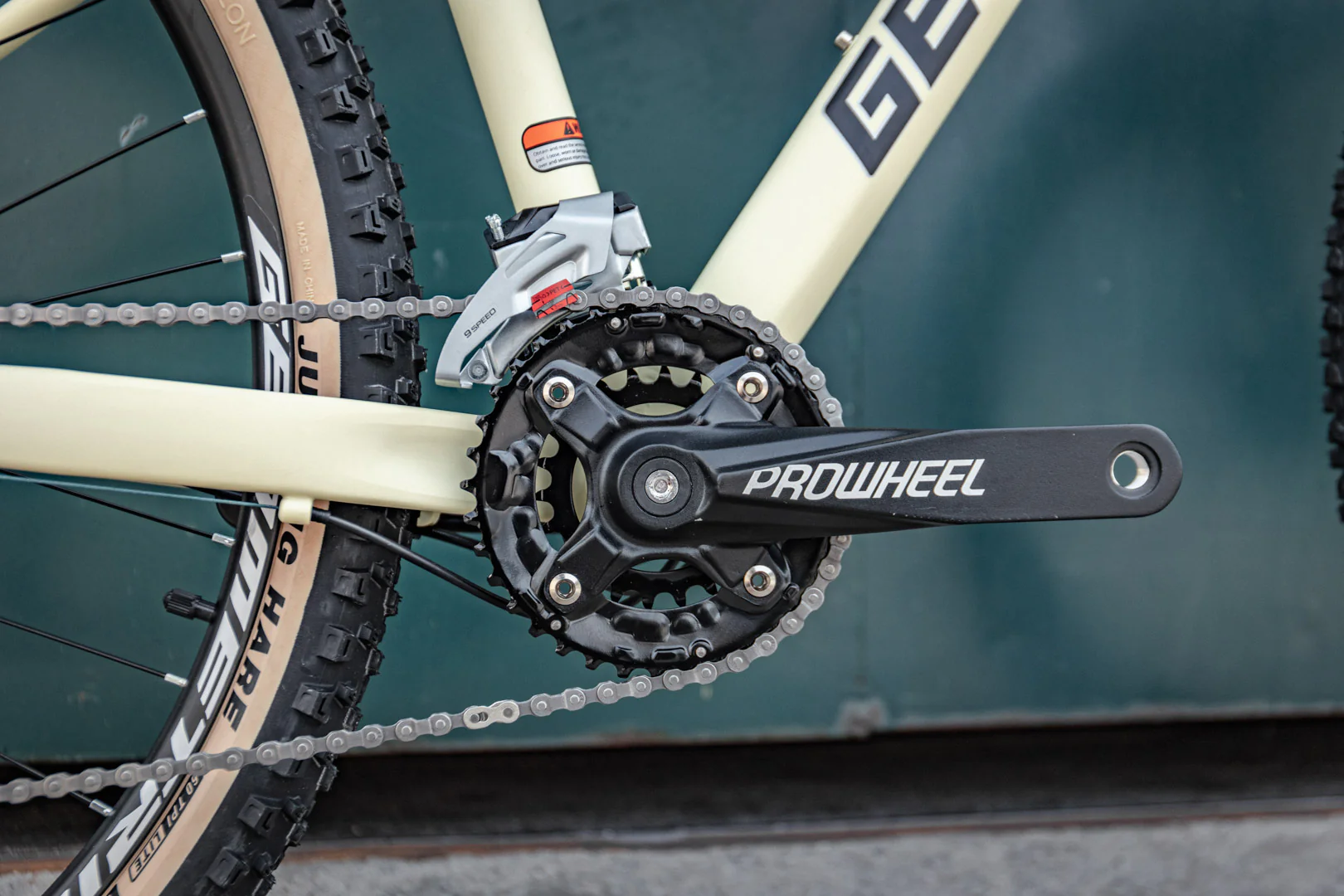

• Crankset: Prowheel (non-hollow) 22T & 36T, crank arm length 170 mm
• Cassette: ATA 9-speed, 11–36T -

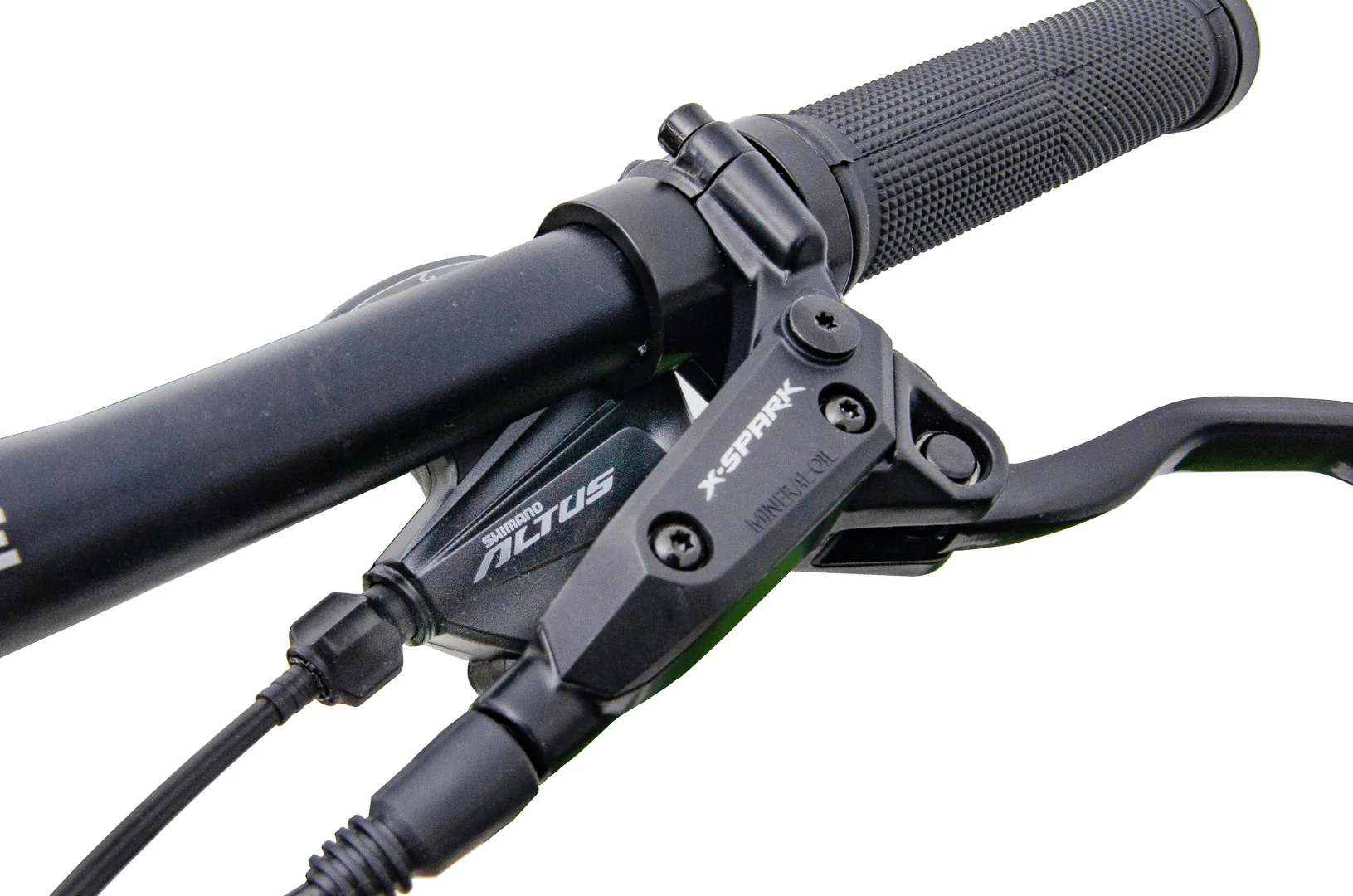

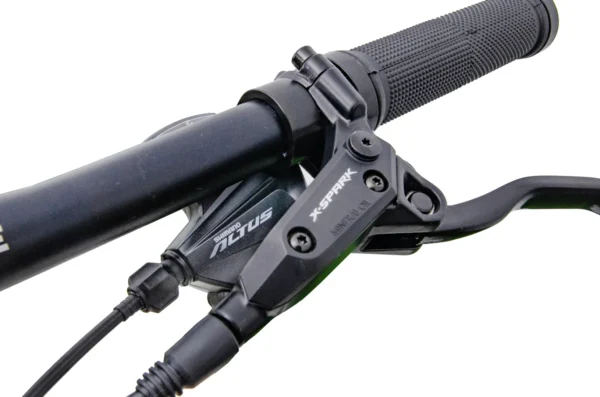

Brakes: X-Spark hydraulic disc brakes, front and rear, model HD-M500
-
Rims / hubs: Geometric alloy double-wall rims, 32H, with sealed bearing hubs
-

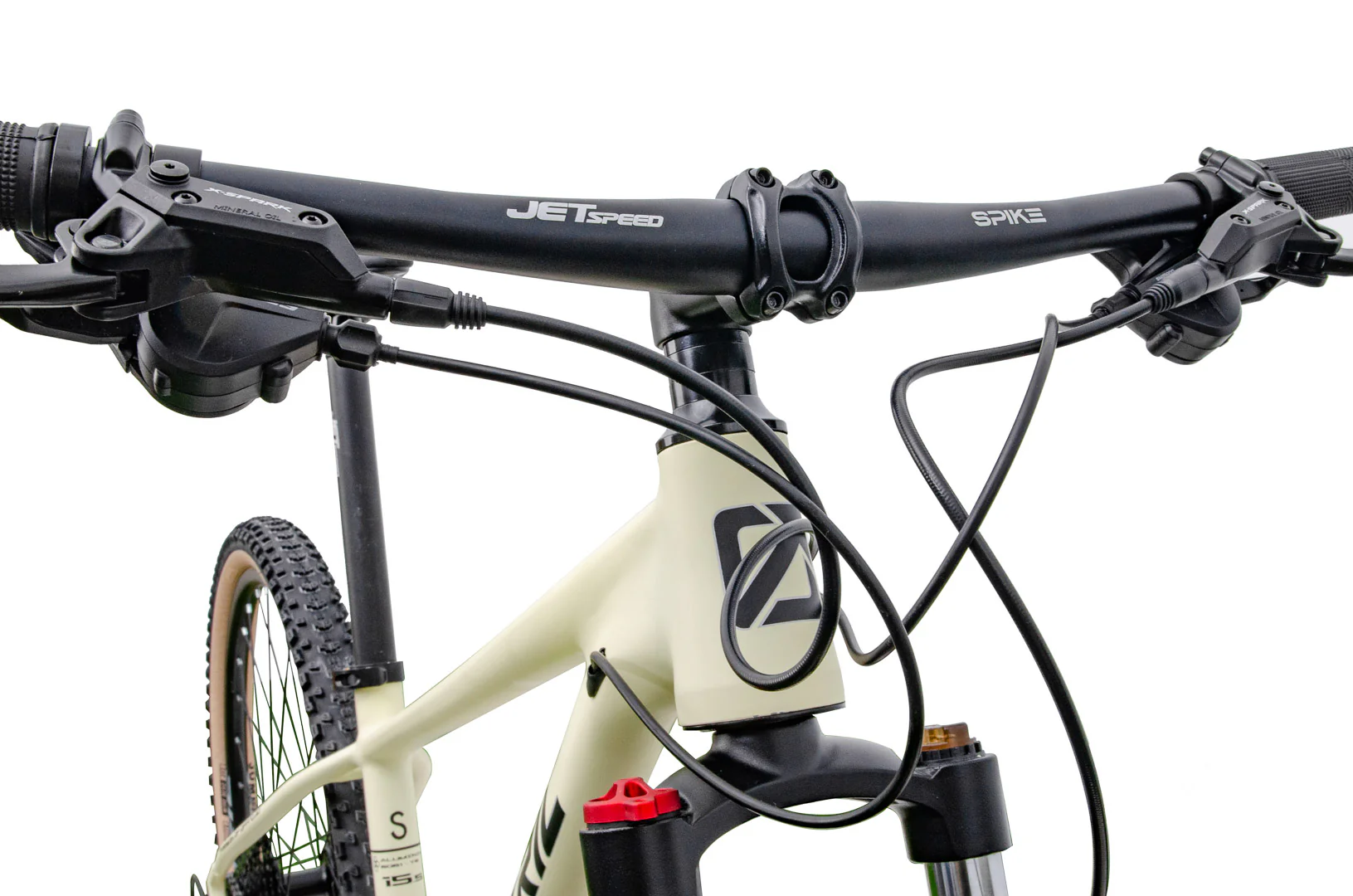

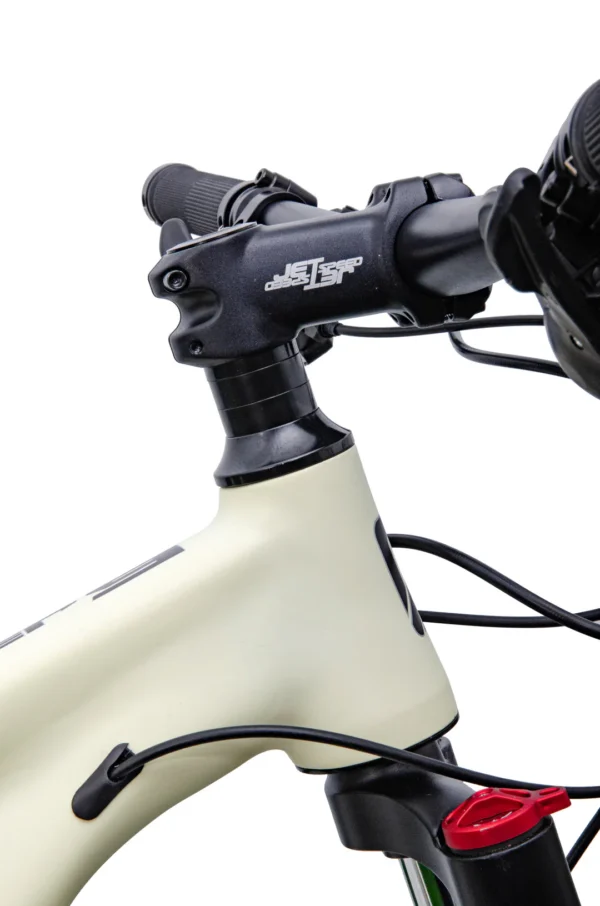

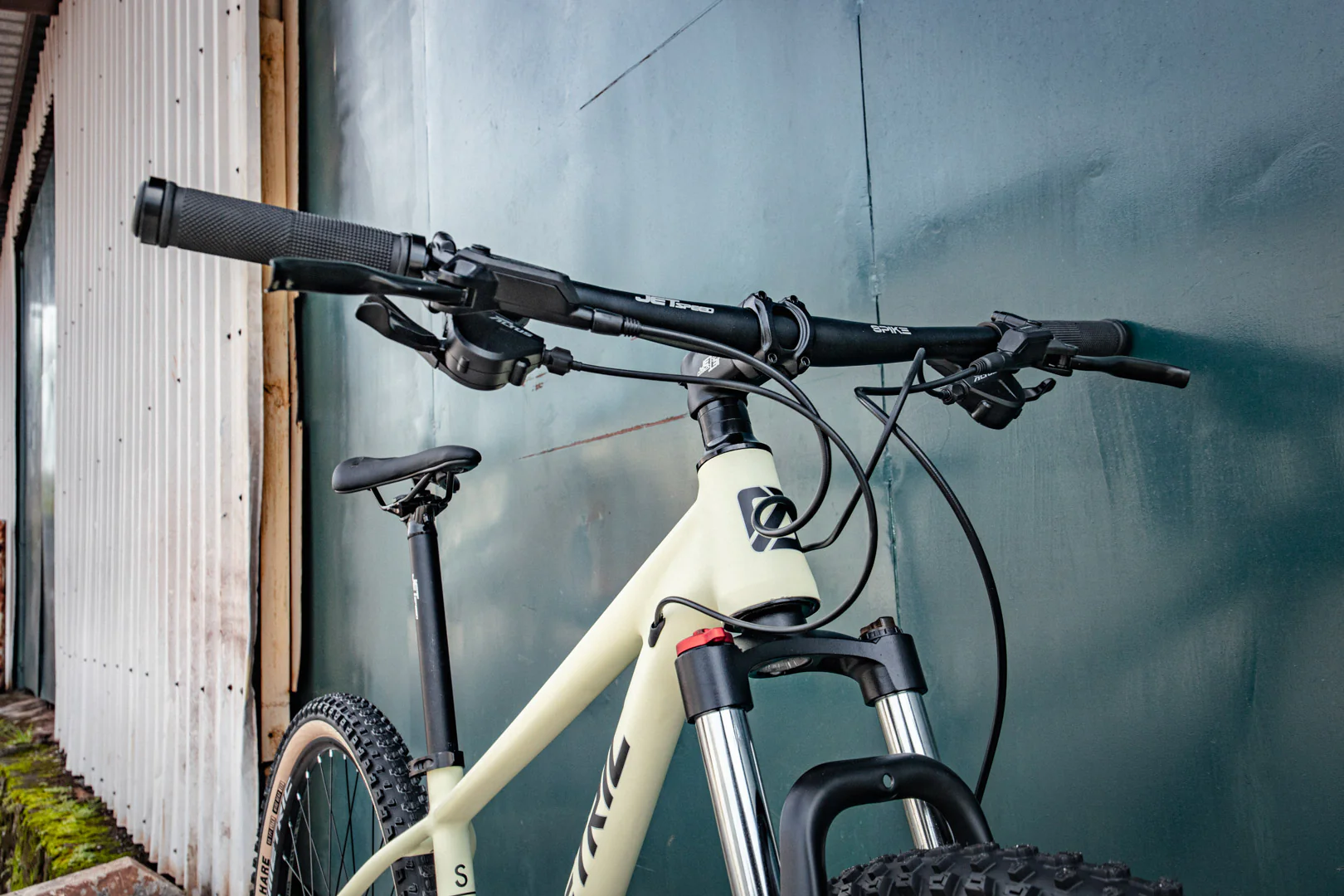

Handlebar / stem / geometry: Jetspeed aluminium handlebar, 700 mm width, 9° back sweep; stem 90 mm ±7°
-
Weight: Approximately 15.3 kg (ready to ride)
-
Intended rider range: Suitable for riders whose height matches the frame sizes (roughly medium build)
Key Features & Advantages
-
The 29-inch wheels roll over obstacles more smoothly and retain momentum on rough trails.
-
Hydraulic disc brakes give dependable stopping power, even on muddy or wet terrain.
-
The 2×9 gearing gives a broad range suitable for climbing and speed sections.
-
Alloy frame keeps weight down while resisting corrosion in Malaysia’s climate.
-
Sealed bearing hubs reduce friction and require less frequent maintenance.
-
100 mm front suspension helps absorb bumps and uneven ground, improving control.
Usage & Instructions
Assembly / Setup
-
On delivery, ensure front wheel, handlebar, saddle, pedals and brakes are installed and tightened according to torque specs.
-

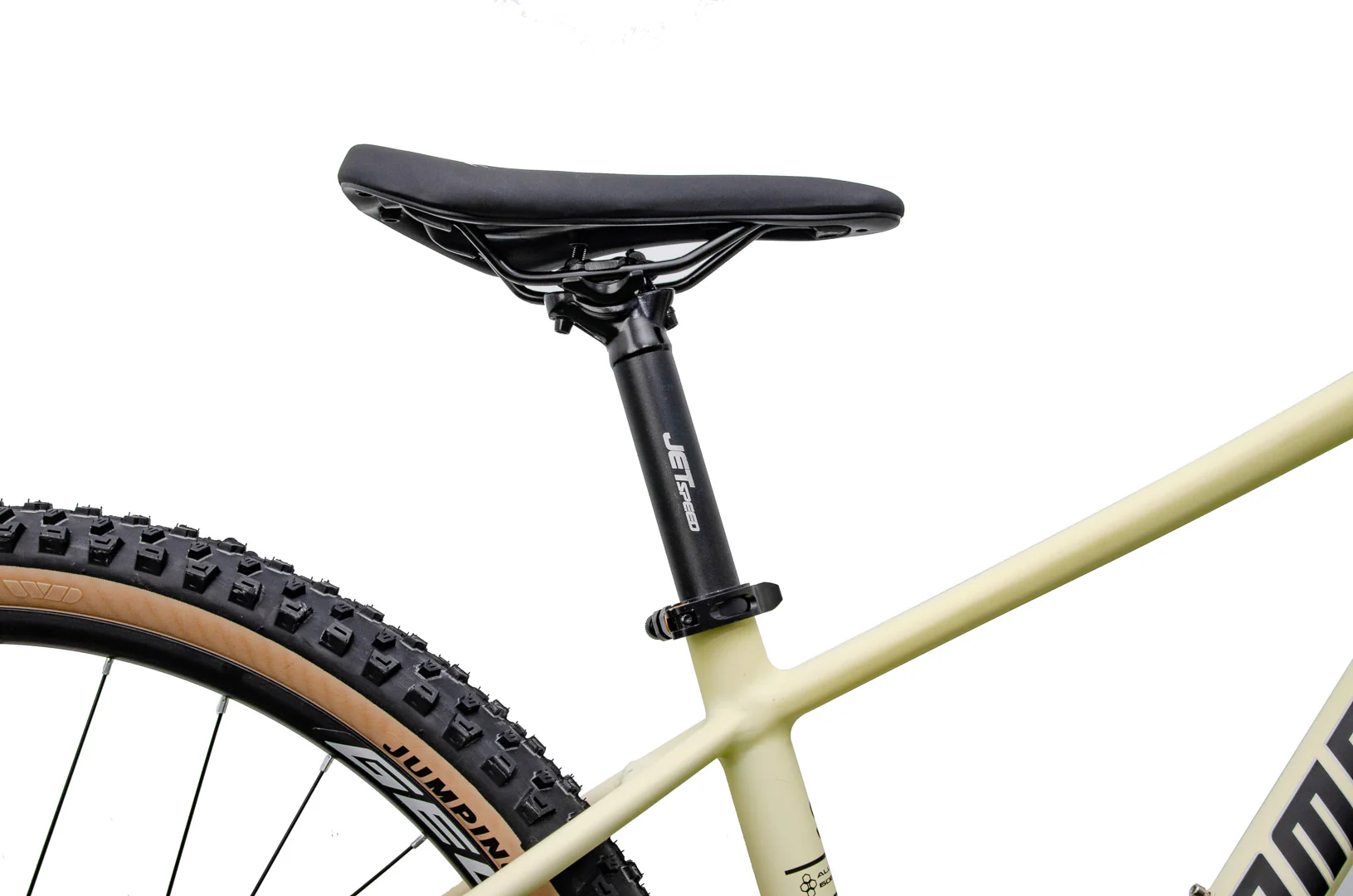

Adjust saddle height so that your leg has a slight bend when pedal is at the lowest point (not fully locked).
-
Align handlebars with the front wheel, tighten stem bolts securely.
Riding / Shifting
-
Start in a moderate middle gear before adjusting up or down.
-
When shifting, ease pedal pressure slightly to allow smooth transitions without strain.
-
Use front and rear brakes together, modulating pressure rather than grabbing abruptly.
-
On steep climbs, shift to lower gears (larger cogs) to maintain cadence.
Maintenance Tips
-
Clean and lubricate the chain regularly (especially after wet rides).
-
Check tyre pressure often—refer to markings on tyre sidewall (e.g. 30–50 psi or as recommended by manufacturer).
-
Inspect brake pads, rotors, cables (or hydraulic lines) periodically for wear.
-
Check frame, bolts, headset, suspension travel and tightness of components.
-
Replace worn parts (chain, cassette, cables) before they cause damage to surrounding components.
Precautions & Safety Notes
-
Always wear a certified helmet, gloves and reflective/visible clothing when riding—especially in low light or rain.
-
Verify that all quick releases, bolts and clamps are fully secured before starting each ride.
-
Do not exceed the total load capacity (rider + gear).
-
Avoid hitting large obstacles or riding over hard curbs at high speed to prevent damage to rims, fork or frame.
-
If you hear unusual noises, feel looseness in steering or frame, or experience brake or gear failure, stop riding immediately and have the bike inspected.
-
Store the bike in a dry, shaded environment when not in use; prolonged exposure to sun, humidity or salt air may degrade components faster.
